شاحنة كرين

ID:504

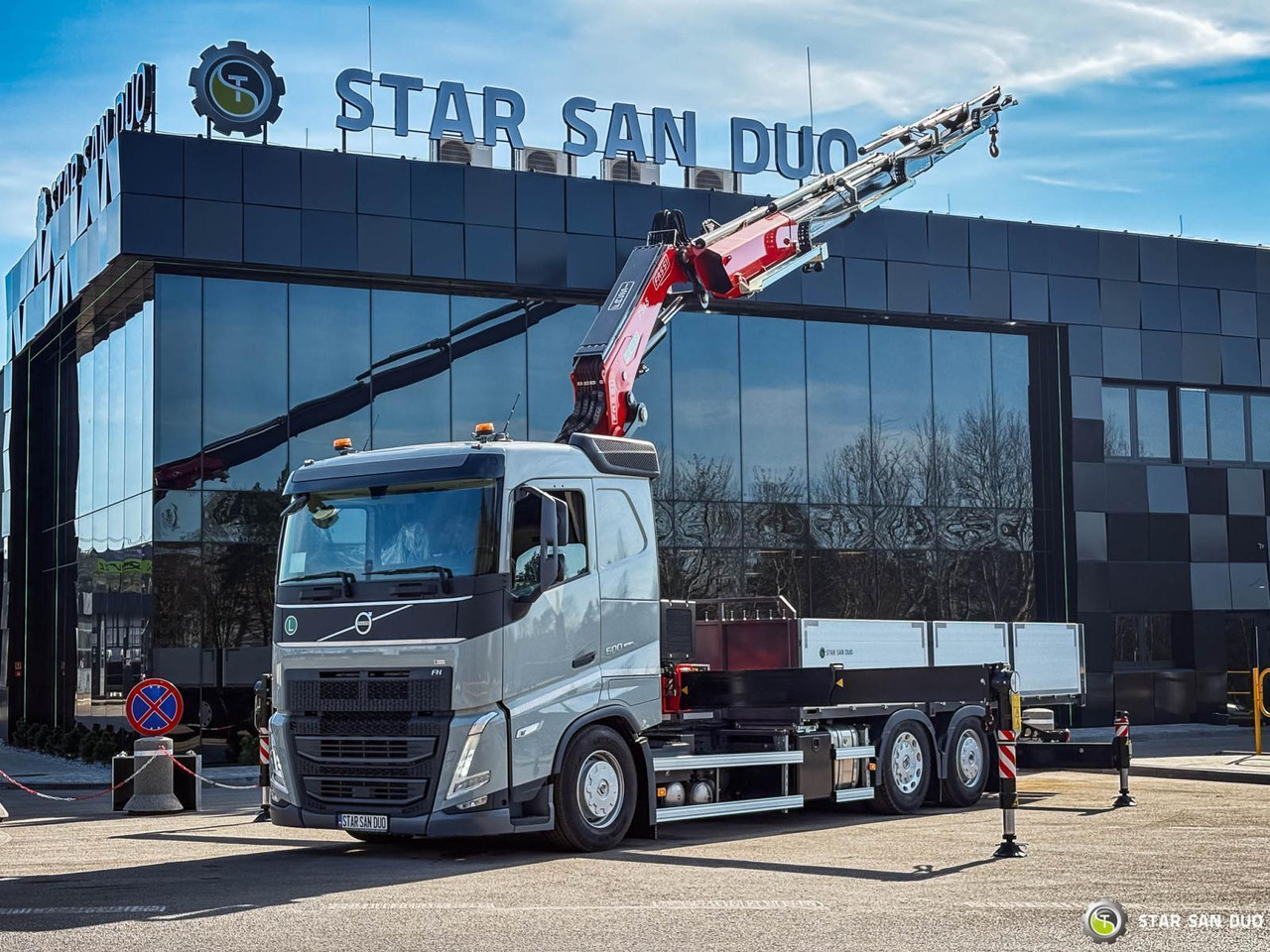

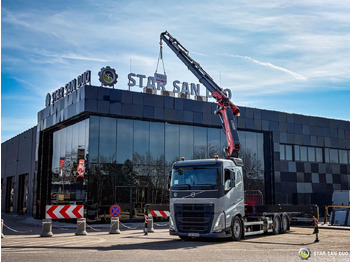

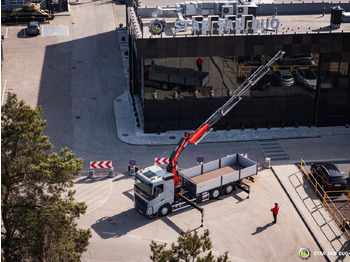

1. Volvo FH D13 500 WB4900 6x2 chassis

• 6x2 drive

• Front pneumatic axle 9000 kg

• Rear bogie cushion 23000 kg - first drive axle 13 tons, second hydraulically steered axle 10 tons,

• Technical weight of the set 50000 kg

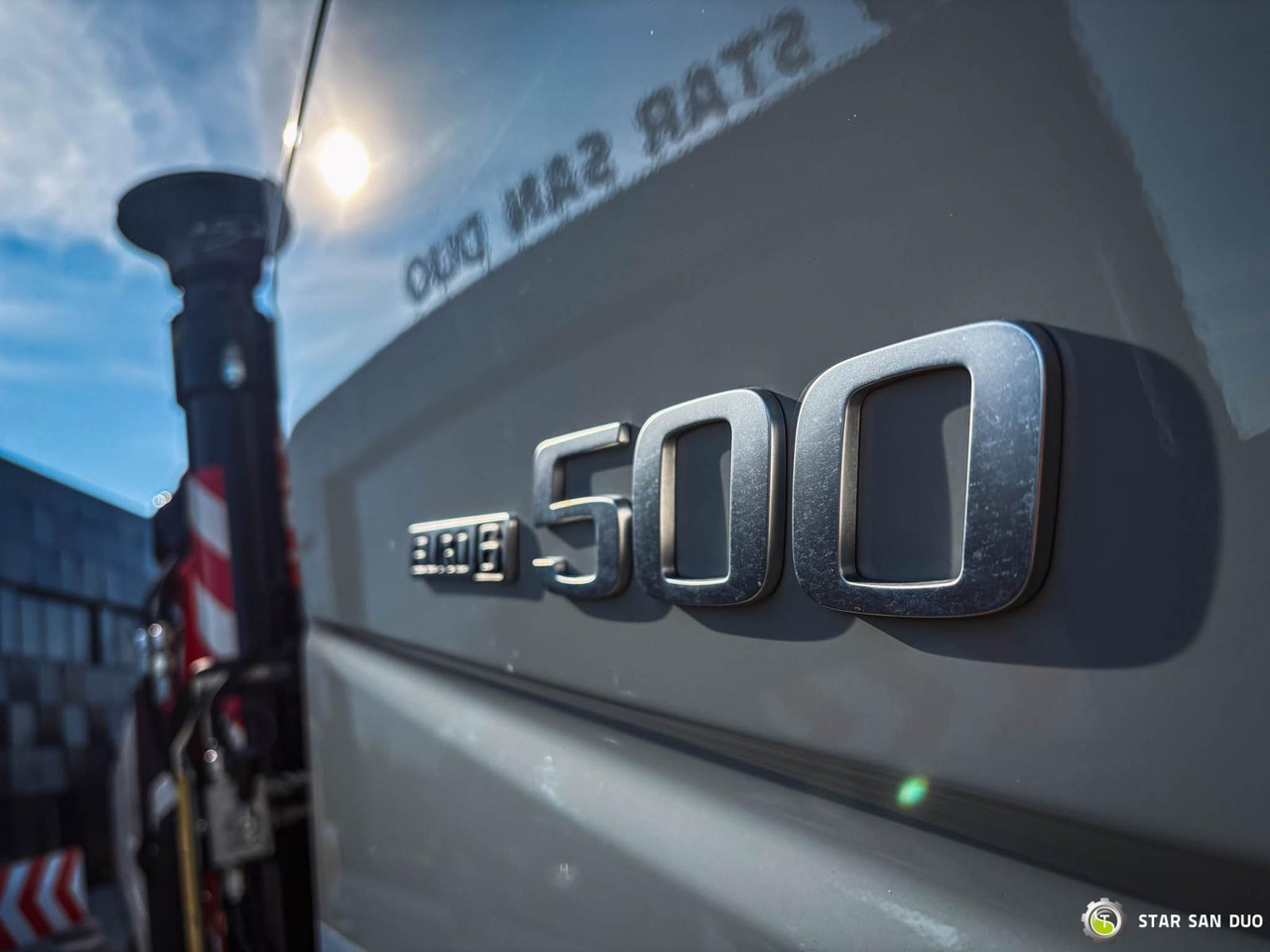

• Frame reinforced along the entire length (inner insert 5mm) • D13 500kM Euro 6 phase E engine,

• VEB+ engine brake,

• I-shift automatic gearbox, one crawler gear,

• Rear axle without hub reduction ratio 2.64

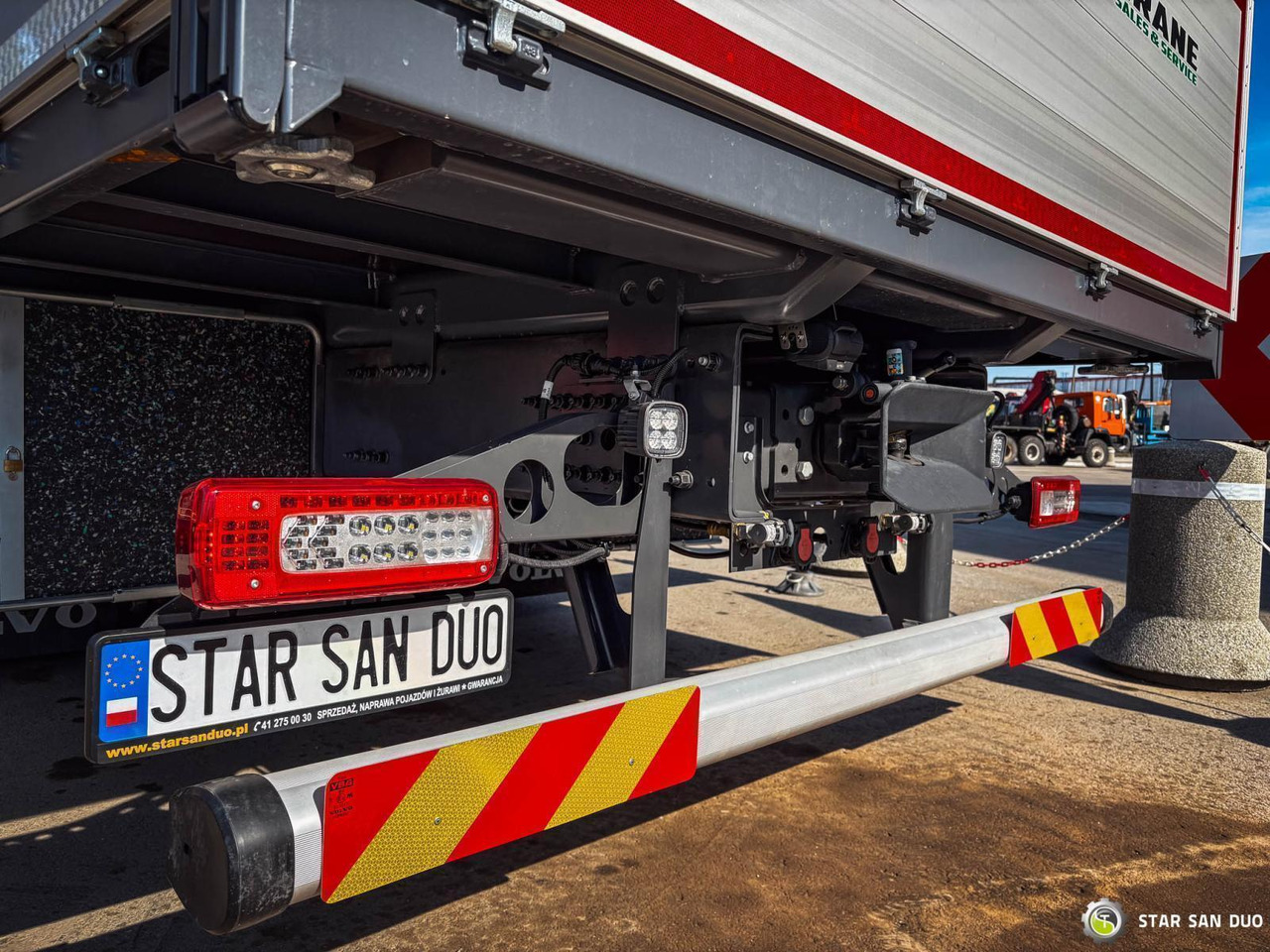

• Rear coupling fi 40mm Rockinger,

• Wheelbase 4900mm,

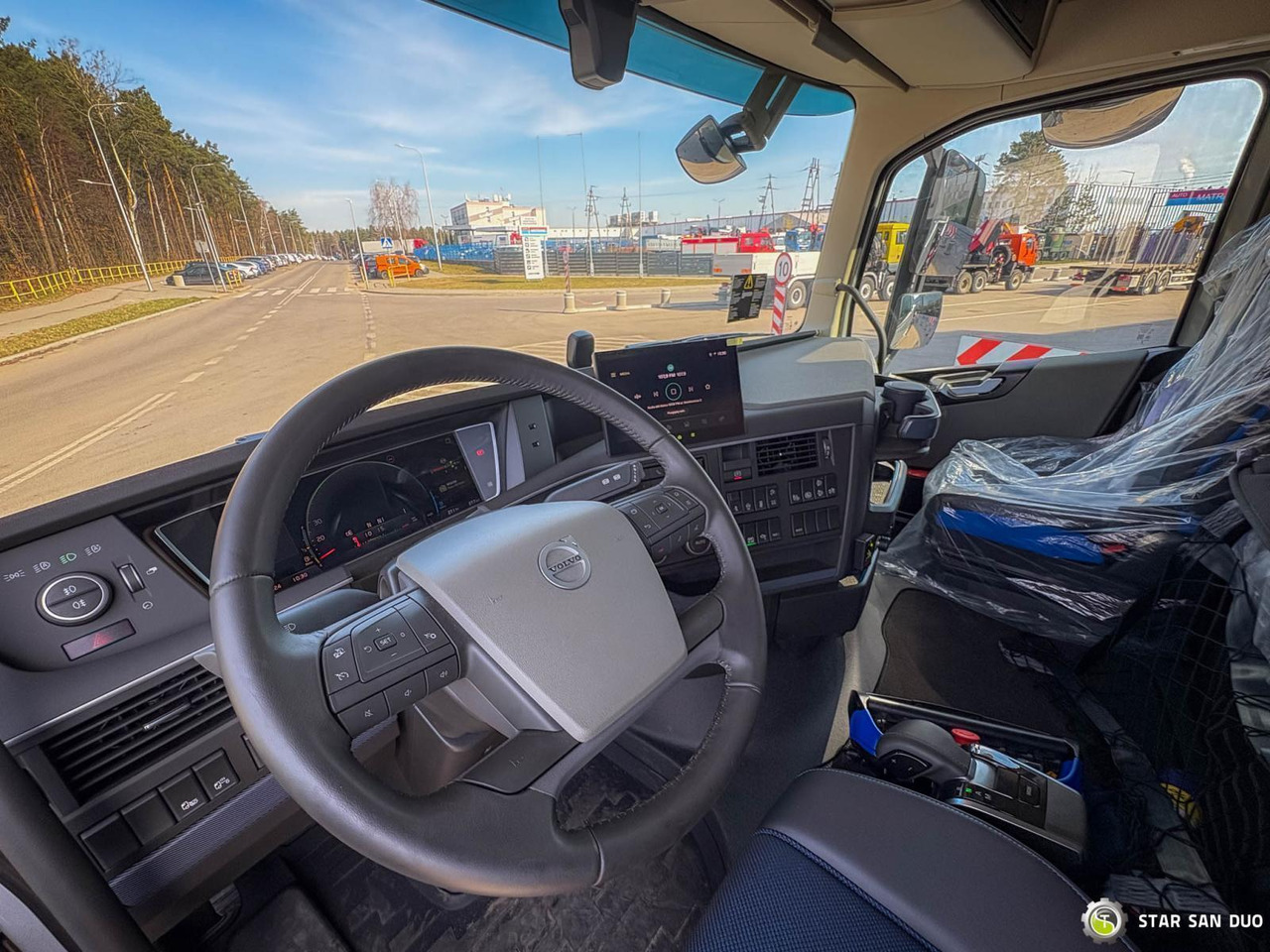

• FH sleeper cab with standard height,

• Gray color silver gray,

• Two benches,

• Two heated air-suspension comfort seats 1+1,

• Webasto dry 2 kW, refrigerator in the cabin,

• Leather multi-function steering wheel,

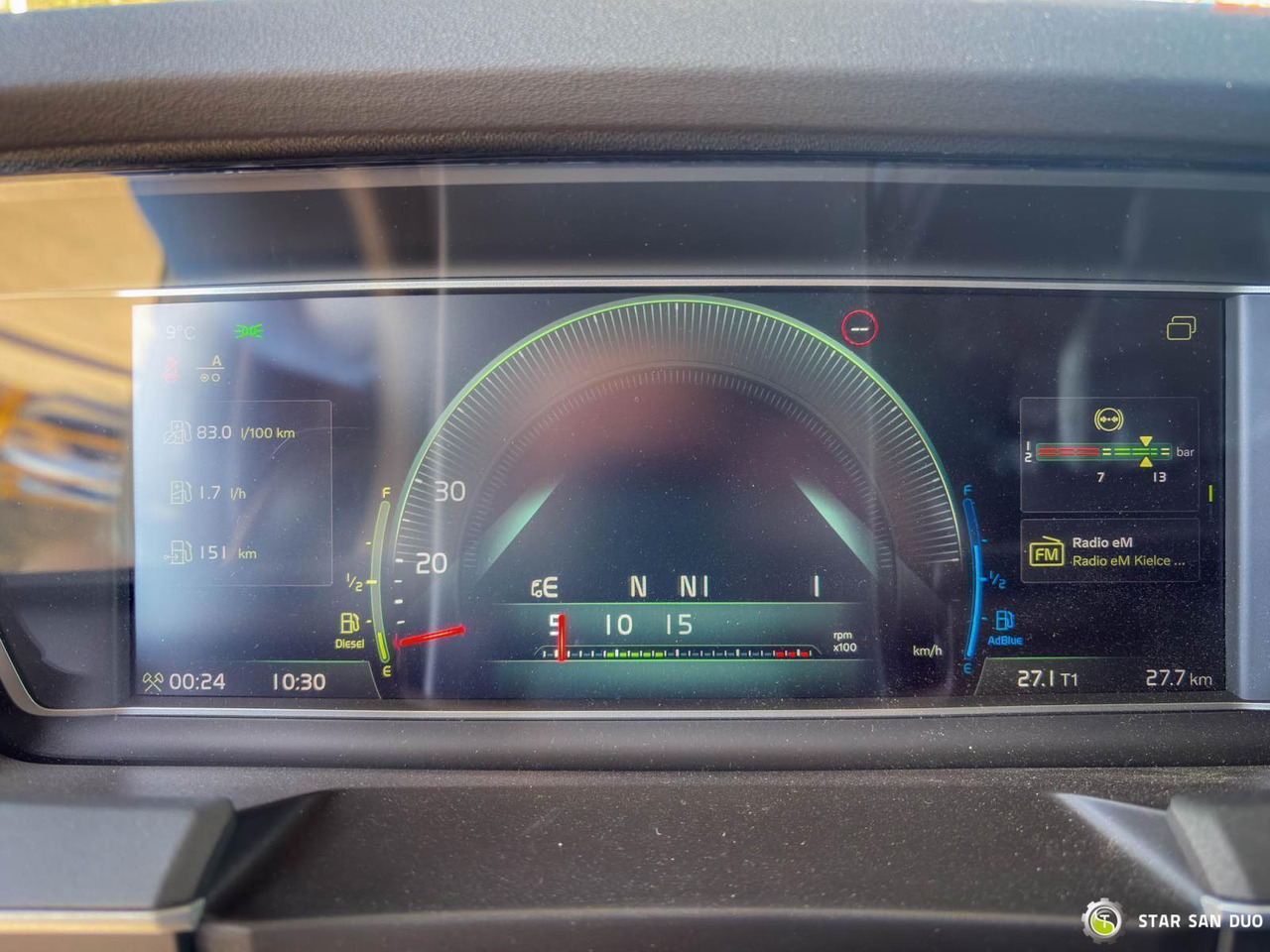

• Rich set of instruments,

• Reversing camera and blind spot camera with additional multimedia display,

• EC 4.0 tachograph

• Preparation for CB and FMS communication,

• 6 LED work lamps,

• Front and rear main LED lamps,

• Rooster warning lamps on the roof,

• Central locking with remote control,

• Axle load indicator,

• Front collision warning system with electronic brake,

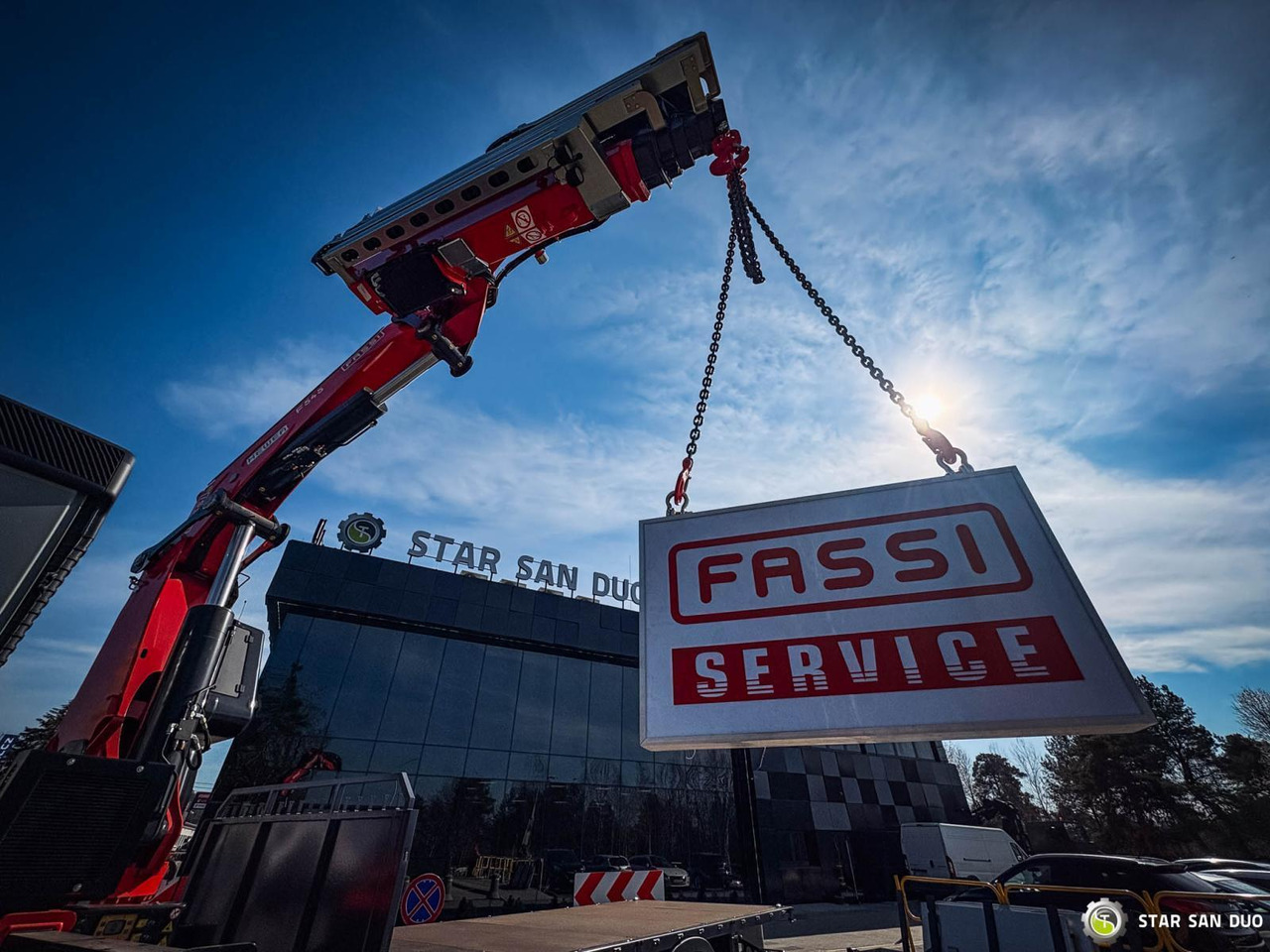

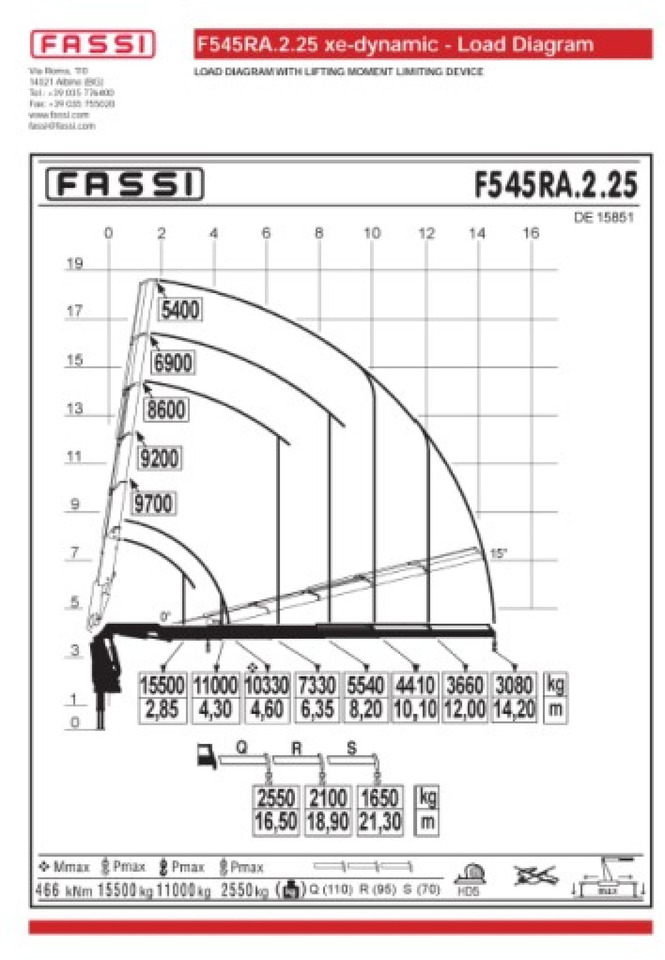

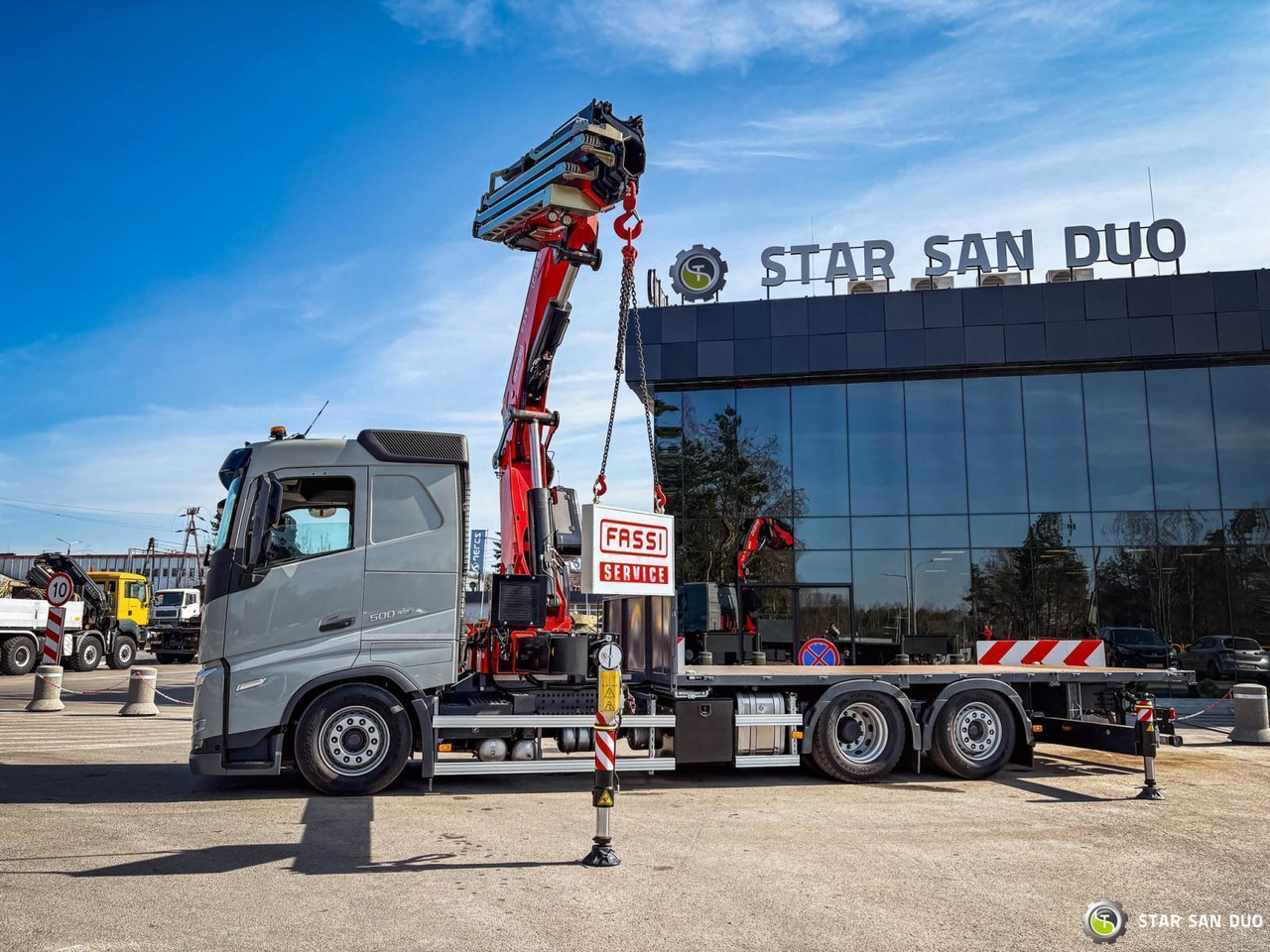

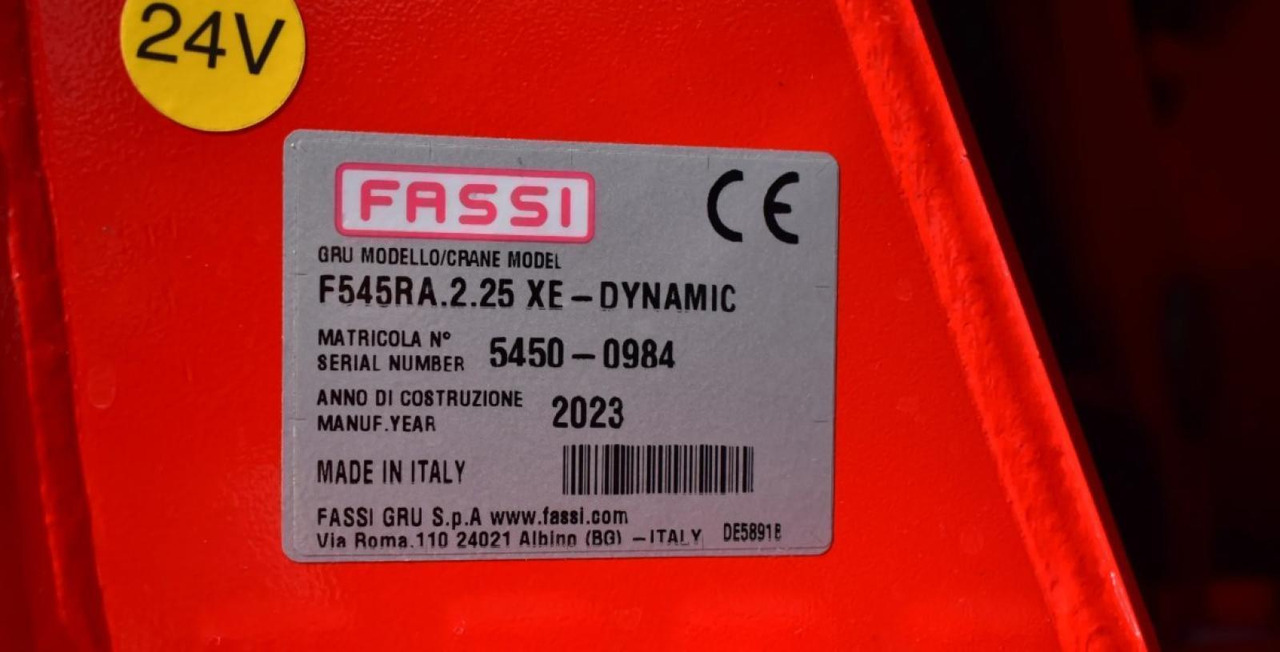

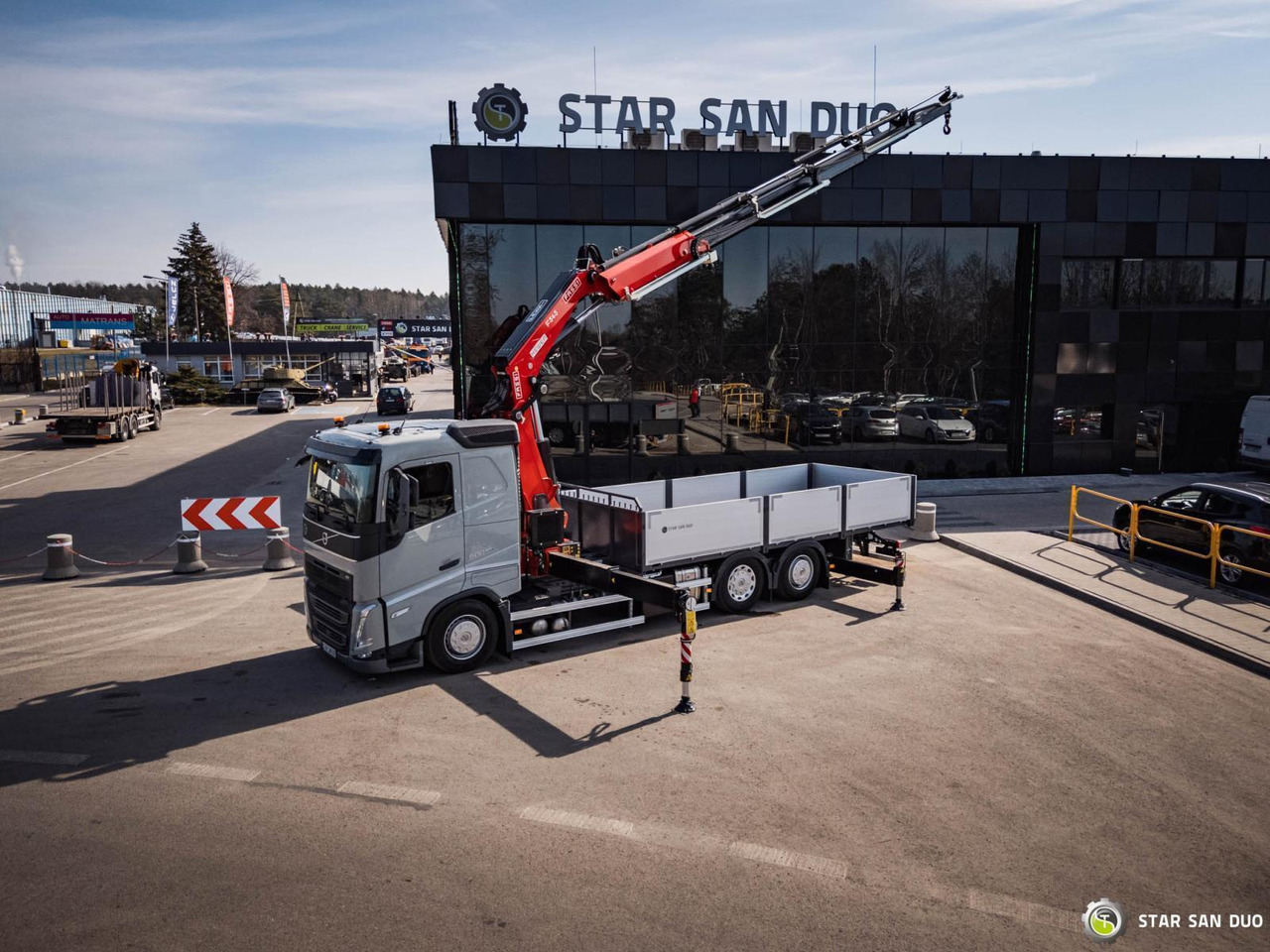

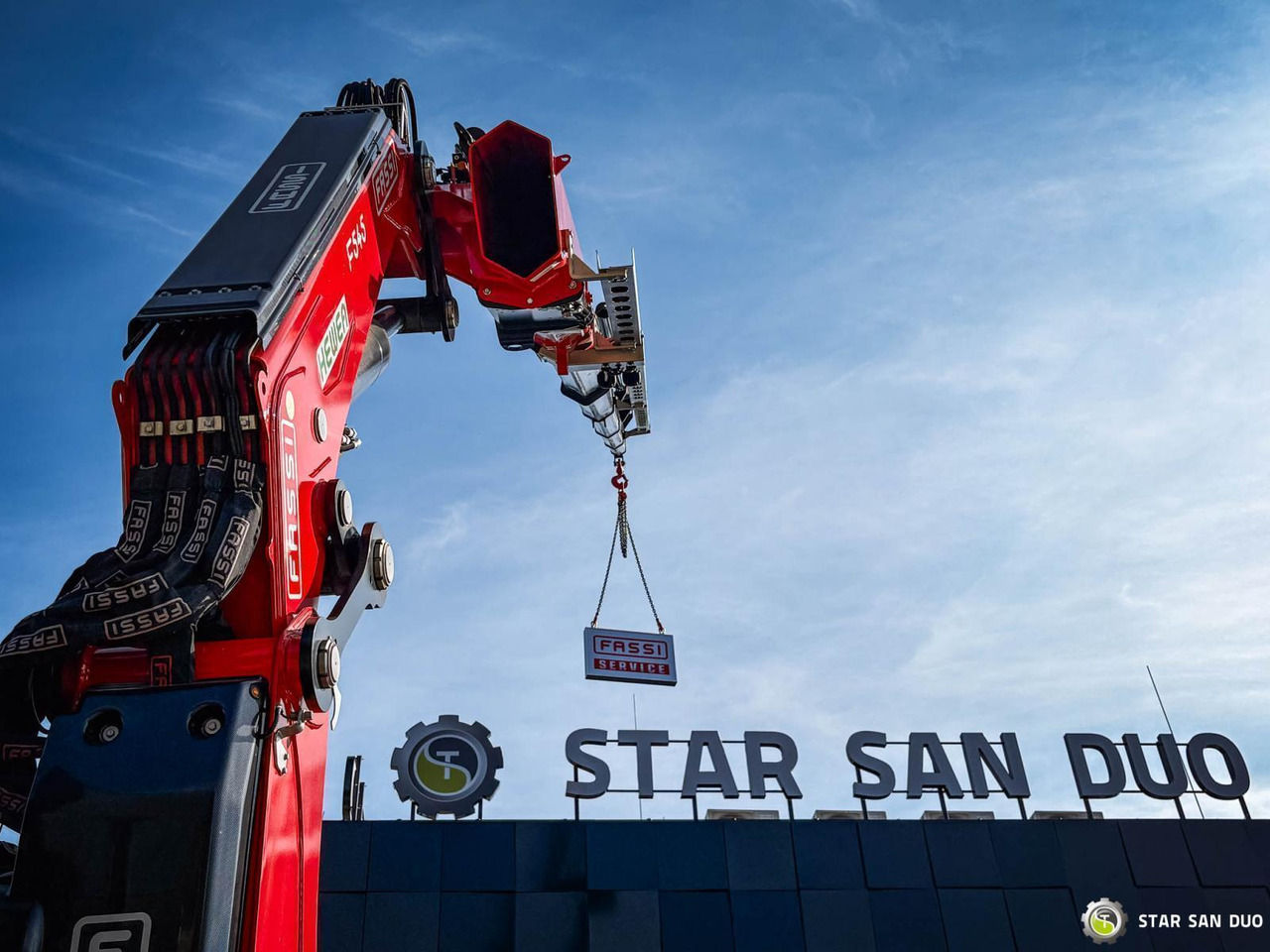

2. Fassi F545RA.2.25 crane mounted behind the cabin

• 5 hydraulic arms

• 5/6 function

• Unlimited 360 degree rotation

• Support legs rotated 180 degrees in 7790 mm spacing

• Additional support legs in 4984 mm spacing

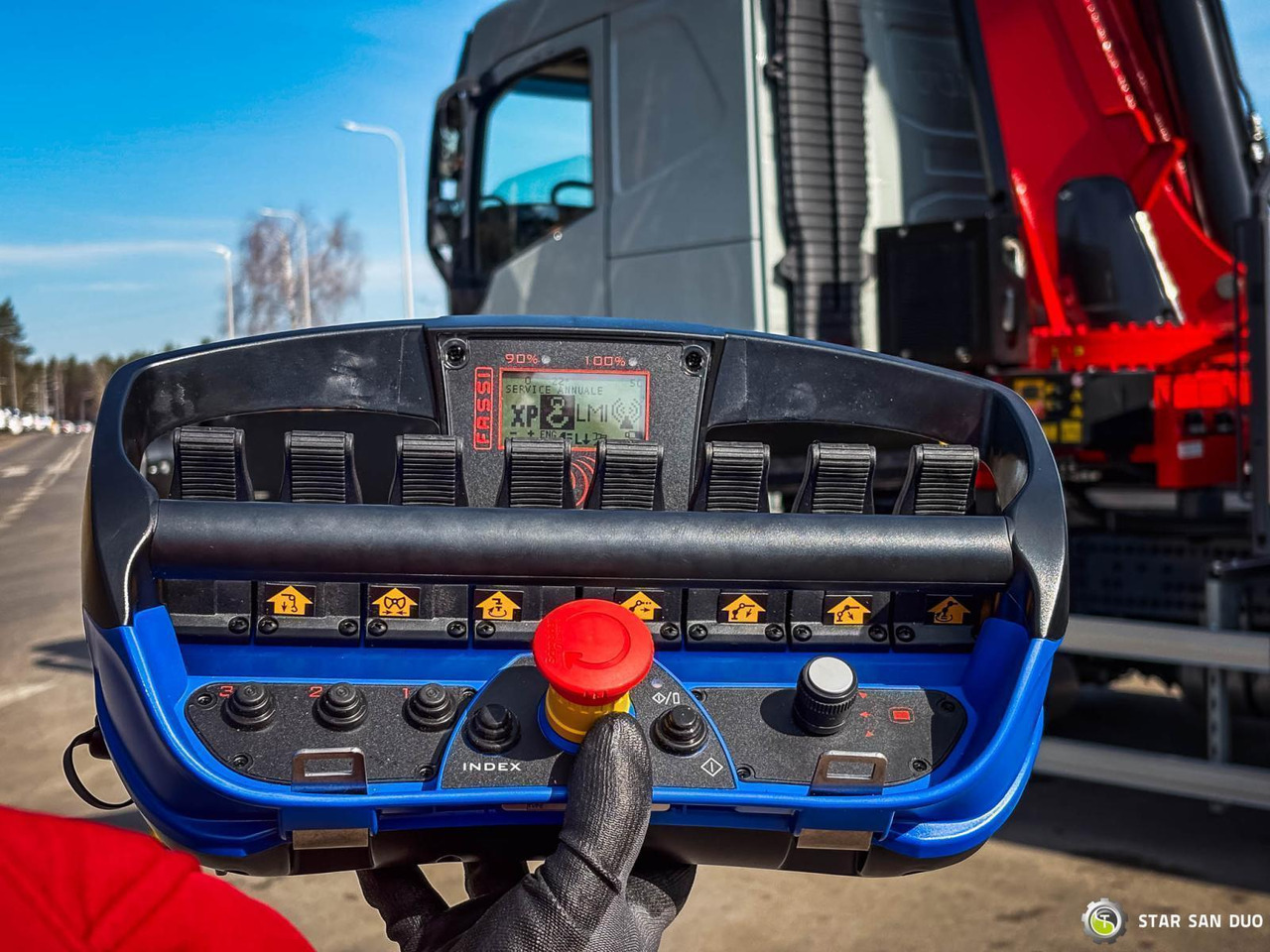

• Radio control with Start/Stop control and engine speed control

• FSC H control system, which controls stability and manages lifting functions depending on the support spacing

• LS variable displacement hydraulic pump,

• Crane adapted to mount the boom

• Winch preparation - mounting plate, 7th hydraulic section and remote control.

• OPTION - 2T or 3T winch, the winch can work with the crane alone or with the crane and boom.

• OPTION - additional hydraulic arms (maximum 8 arms)

• OPTION - additional manual arms, • OPTION - additional boom - (maximum 6 hydraulic arms)

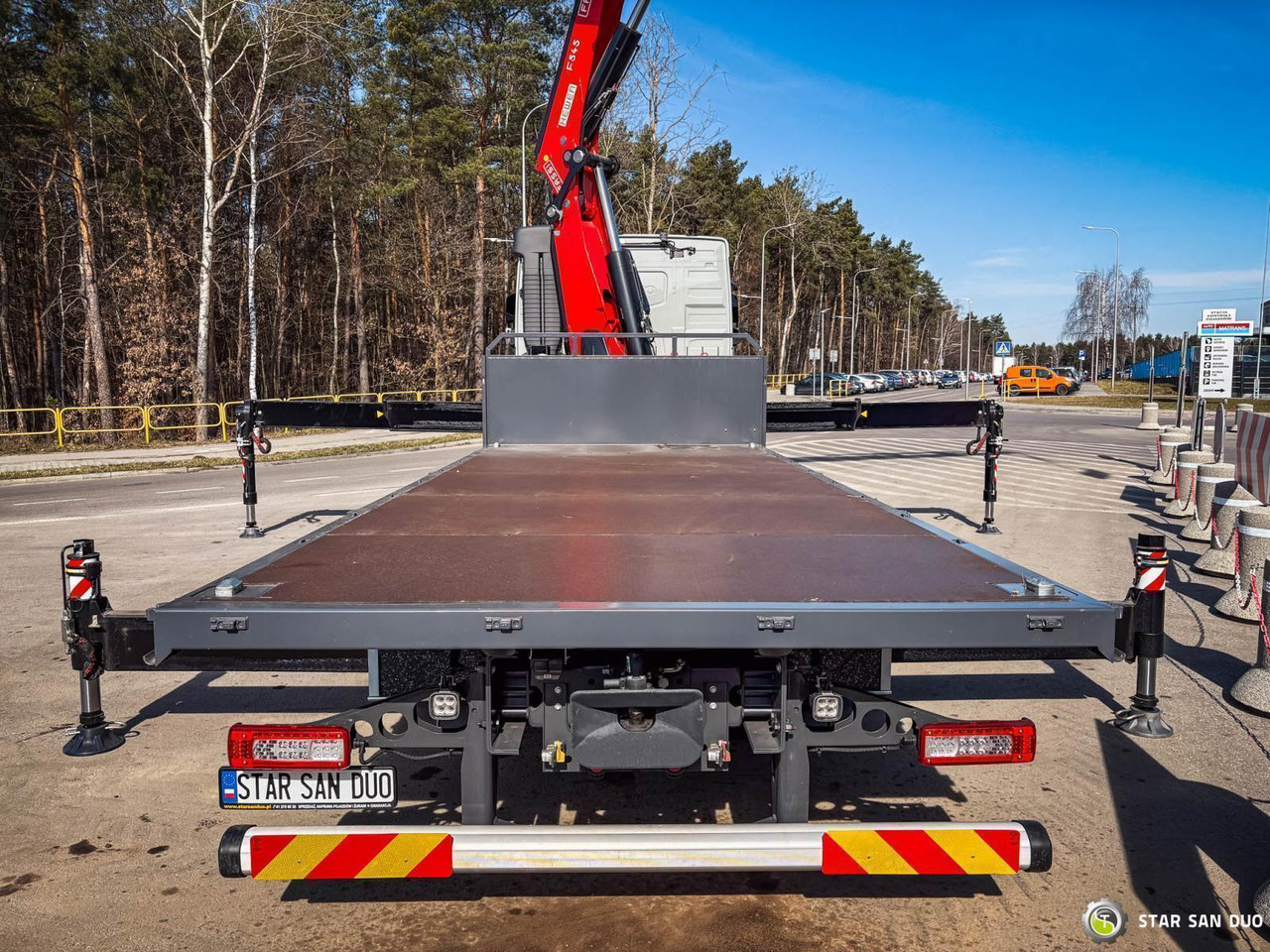

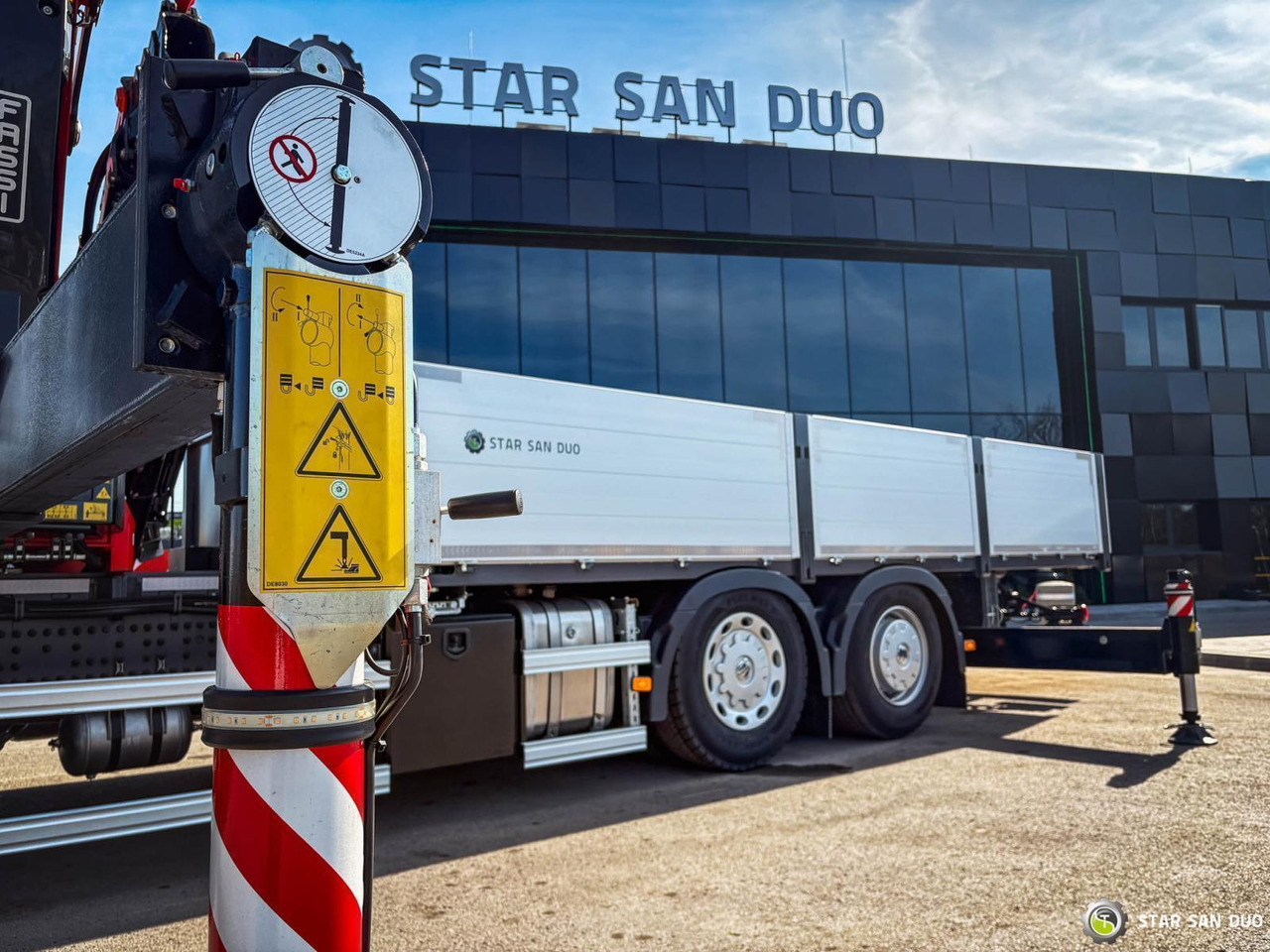

3. Fixed body

• External body approx. 6350mm, external width 2550mm (inside approx. 6275mm, internal width 2480mm)

• Twist Lock fastenings in the floor for 20' containers

• Steel front wall 1000mm high - chain and sling holders,

• 25mm removable aluminum rear board 800mm high,

• 25mm aluminum side boards 800mm high,

• Removable side boards divided into 3,

• Two 800mm removable middle and rear posts,

• 9 cargo handles in the plating per side - load capacity 3 tons each,

• Floor made of 24mm thick non-slip plywood,

• Road load capacity approx. 7.5 tons
