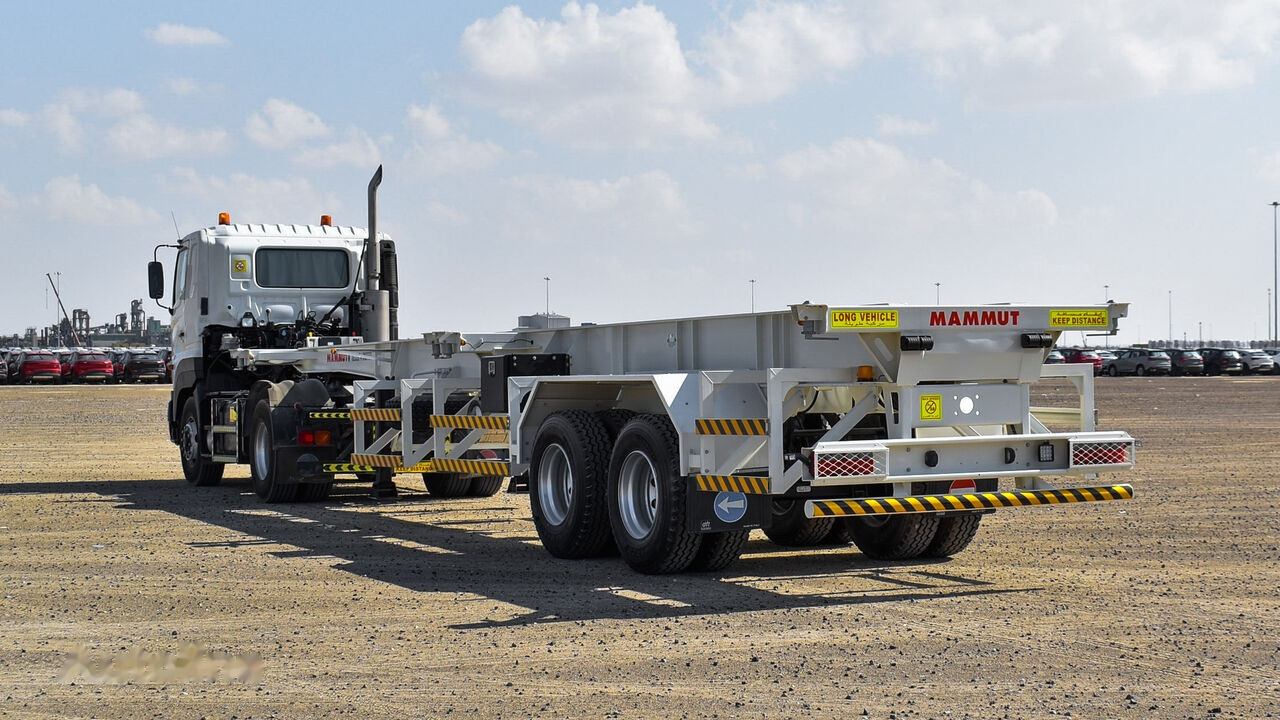

جديدة نصف مقطورة شاسيه Mammut SKELETAL SEMI TRAILER 40 TON PAYLOAD

Overall Length:

12,420 mm (approx)

Bed Length:

12,200 mm (approx)

Bed Width:

2,500 (approx)

Weight:

40 Ton Payload (Max)

Chassis:

Longitudinal members of hot rolled / welded I beams of Grade ST 52-3 or equivalent. All other cross members/ pressed steel channels/plates of Grade ST 37-2 or equivalent.

Axle/Suspension:

2 x 16 Tons Mech Overslung suspension axles.

Tyres:

8+1 Nos. 315/80 R22.5” tyres. (On Road Pattern)

Rims:

8+1 Nos. 9.00 x 22.5” Steel disc rims SAF (Sauer) / Equi.

Brakes :

Twin line drum brakes, acting on all wheels with ‘S’ cam actuation. KNORR / WABCO / NEVPA / Equivalent. Single acting diaphragm brake chambers on all axles. Service & Emergency valves. Automatic Load, Sensing Valve, Air Reservoir, Manual Parking brake.

Landing Gear:

Two speed mechanical telescopic type. SAF (SAUER) / FUWA / Equi.

King pin:

"2” dia. to SAE standard. SAF / Equi. Interchangable to 3.5”"

Electrical :

7 way quick release connector, Pair of 24 volts rear light units, comprising of Tail light, brake and signal lights fitted with high intensity bulbs ASPOCK / Dyresel / equivalent.

Painting System :

Surface Treatment Grit blasted to S.A.2.5 (Swedish Std.) One coat of Zinc Rich epoxy primer and top coat of high gloss Polyurethane finish paint in single colour. (RALTBA)

Warranty :

One year from the date of delivery of product for all manufacturing defects. Wear & tear parts are not included.

Interior features & Safety

Registration plate lamp.

4 Nos. Side markers on either sides.

Reverse light & horn

1 No. Beacon lights.

Mudguards with Rubber mudflaps.

Rear bumper with Reflecting stripes.

1 No. Tool box without tools.

2 Nos. Winch type spare wheel carrier.

08 Nos. Twist locks (Handle Type)

1 No. Fire Extinguisher Bracket.

Side under run protection.
