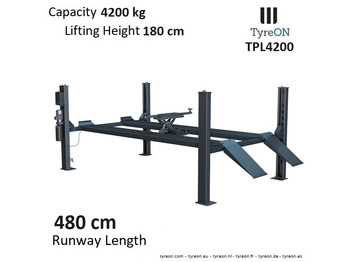

معدات الورش TPL4200 4 post lift - 4.8 meter flat runways - 4.2T

The price is excluding tax and delivery costs

-

Capacity: 4200 kg - flat runways

-

Runways: 480 cm long - 51,2 cm wide

-

Obstacle protection (slack cable); Mechanical safety lock; Automatic unlock (air) - immediate descend; Pressure relief valve; Short ramps of 99,6 cm; Hand pump for lowering in case of power failure; 285 cm between posts, for commercials and campers

-

Drive: 2,6 kW electric-hydraulic

-

Foundation: 200 mm

-

Packaging: L520 x W75 x H125 cm - 2200 kg

-

Distance: Runways 89 -105 cm adjsutable

-

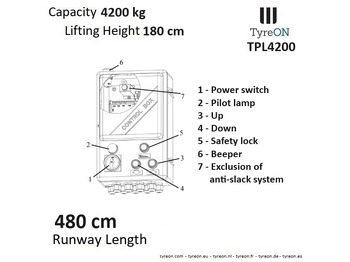

Controller: Raise, unlock and lower

-

Versatile 4 post lift for all makes and models of passenger cars, very low sports cars, large commercial buses and campers.

By pressing the down button, the safety hooks immediately retract and the 4 post lift immediately starts to descend. The 4 post lift does not rise a bit first.

Precisely manufactured using laser cutting and robot welding.

Solid and safe 4 column lift for intensive use.

• Flat runways made from one piece of sheet steel
• Extremely low, 13 cm ramp height, ideal for vehicles with low ground clearance
• Slack cable protection (obstacle protection)

​

• Roll-off protection at the front and the rear
• Load-dependent lowering valve
• Raise, unlock and lower with all-in-one 24V controller with dead man's control
• Very nicely finished and fully "powder coated"

​

• System for precise levelling of the runways with the safety grids
• The electro-pneumatic safety catches are automatically released during lifting and lowering
• Protected against unintentional lowering, all 4 columns are mechanically locked

​

• Broken hose protection
• Upper and lower limit switch (CE-Stop)
• The ramps can be mounted on both sides of the lift
• The 4 post car lift can be lowered into the (4) mechanical locks so the hydraulic system is relieved

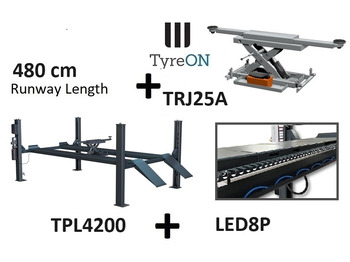

Optional

TyreON LED8P runway lighting 24V LED

TyreON TRJ25A rolling jack 2.5T

TyreON HV-ISO-32 Hydraulic oil - 15 L
