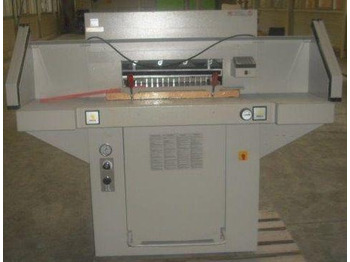

Professional stack cutter EBA 551-06 with 2 knives

Year of manufacture 2008

Machine equipment:

Electromechanical drive for knives;

hydraulic drive for pressing beam;

infinitely variable pressing pressure (250-2000 kg) with visual display;

pluggable press bar cover with snap lock and visual indicator; electro-mechanical drive for back gauge via precision spindle (speed 53 mm/sec.);

Foot pedal for prepressing or as a cutting uter;

optical sectional viewer with light emitting diodes (LEDs);

Stainless steel table tops on front and side tables;

high quality HSS cutting knife;

swing cut that is gentle on the material;

All-steel knife carrier, guided and adjustable on both sides; knife draft adjustment;

Side tables right and left

Safety equipment "SCS" (SAFETY CUTTING SYSTEM):

Electronically protected front table area via safety light barrier and transparent rear table cover; safety two-hand cut release with simultaneity control and repeat lock; automatic return of knife and press bar from any position; switch lock and lockable main switch; knife changing device with covered knife edge; 24-volt control; paper impact angle.

Backgauge control:

99 memory programs with max. 99 steps each;

Chain dimension programming with up to 9 steps possible in the program; program sequence automatic with cut monitoring in program and memory mode;

Direct input of dimensions via numeric keypad;

3 memory keys for fixed dimensions (freely programmable);

electronic digital measure display with 1/10 mm display accuracy;

Set key for reference dimension;

electronic handwheel with infinitely variable speed regulation of the backgauge;

Quick search button for fast forward and backward running of the backgauge; automatic dimension correction in case of backgauge displacement;

Memory mode for repetitive cuts (at the touch of a button),

additional automatic memory; paper ejection function (EJECT) with and without program operation (feed path programmable); delete (DELETE), insert (INSERT) and overwrite of program steps possible; integrated calculator (4 basic arithmetic operations);

Self-diagnosis system with error indication in the display;

Metric/Inch Switching.

Cutting length (mm) 550

Insert height (mm) 80

Insertion depth (mm) 550

Residual cut without press beam cover 20 mm, with press beam cover 90mm
