جرارات الطائرات - تأجير TLD TMX-150/15

Refurbished

-

Capacity: up to 165t MTOW

-

Sale

-

Pushback tractor for narrowbody aircraft

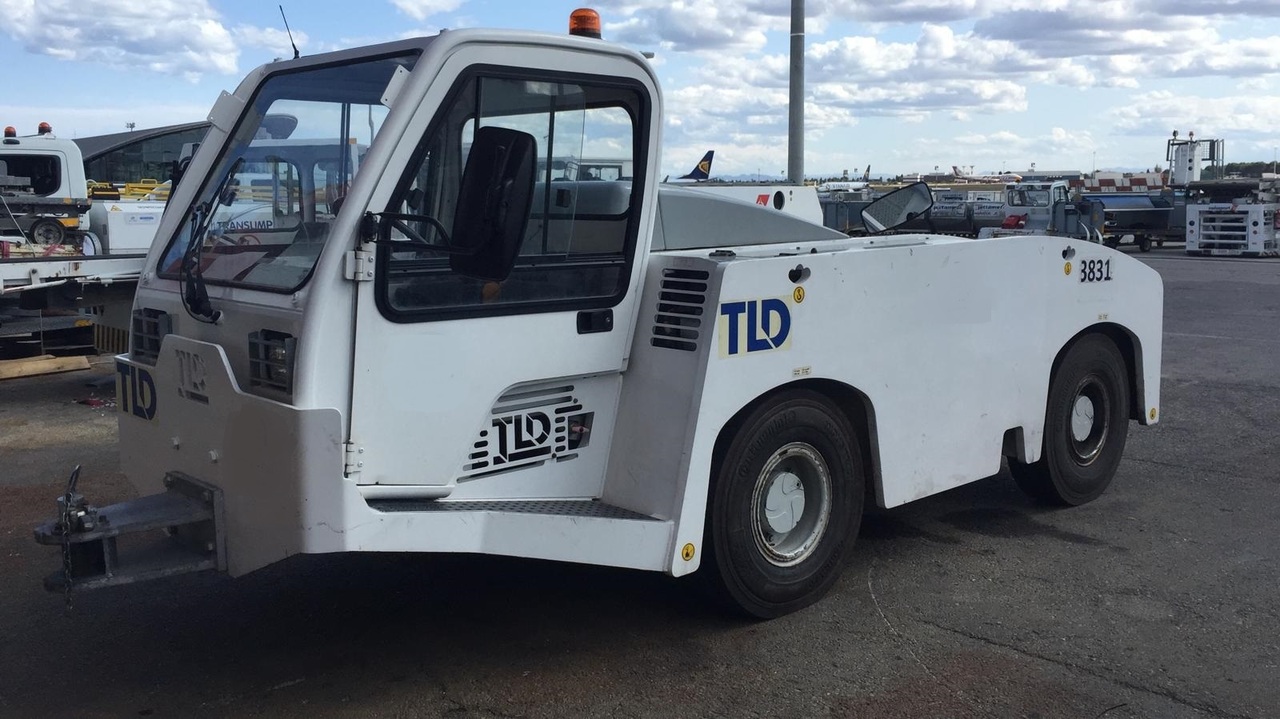

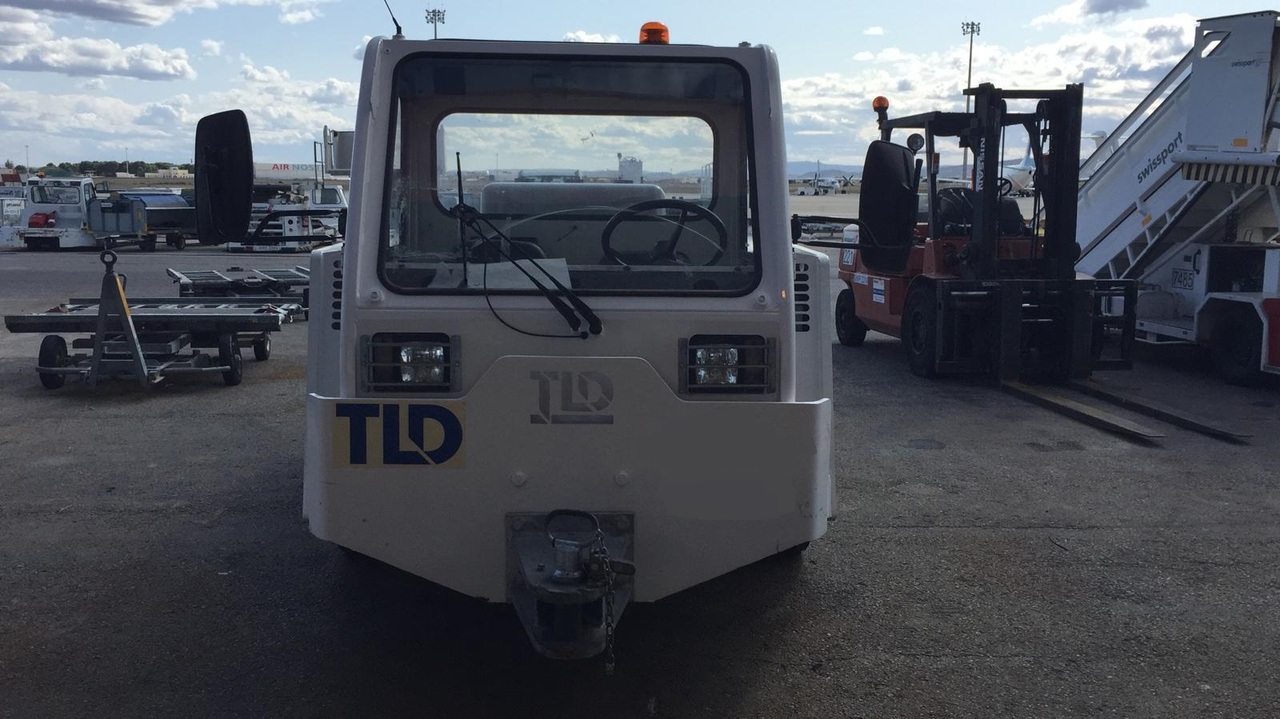

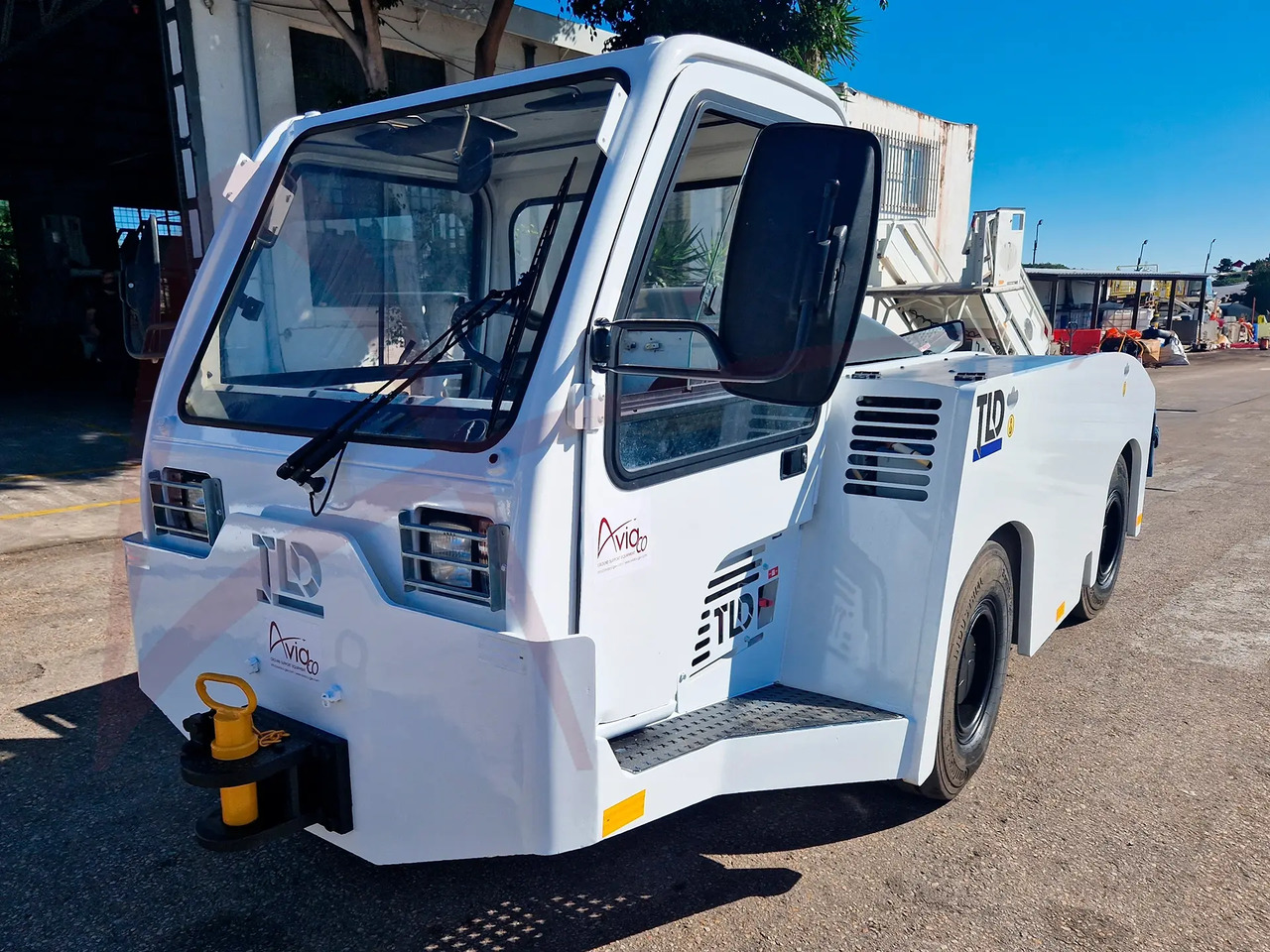

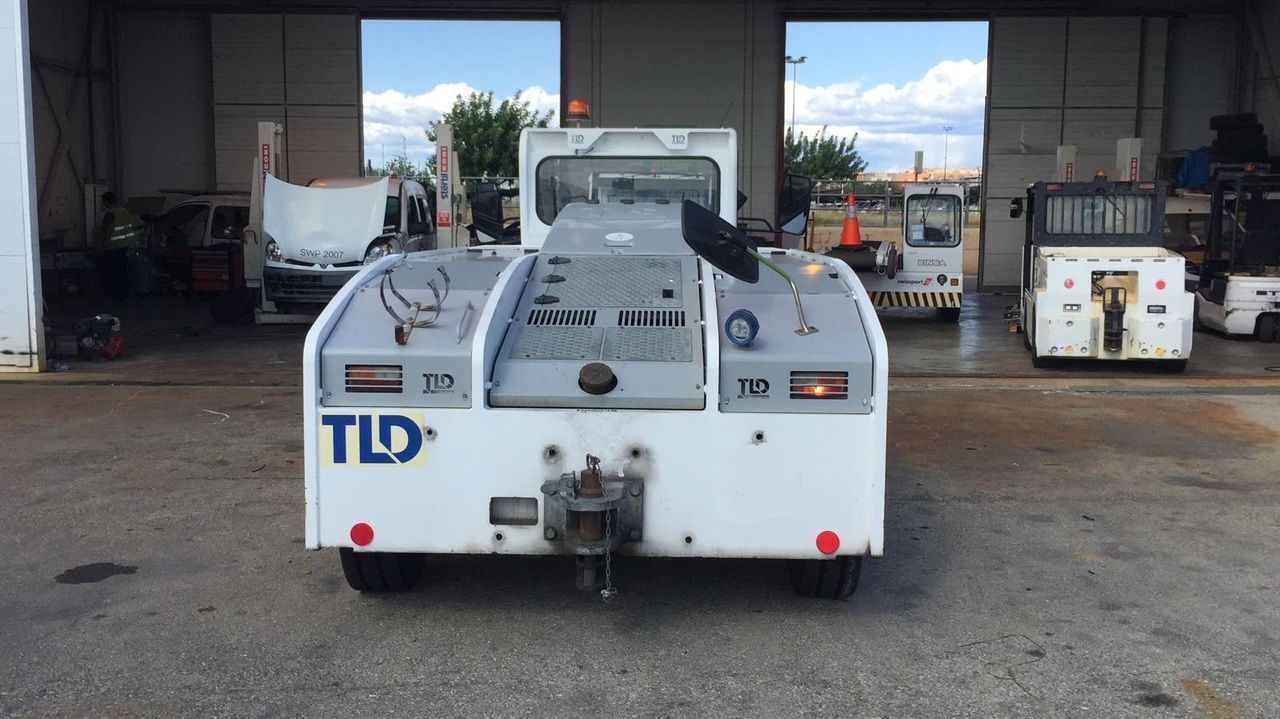

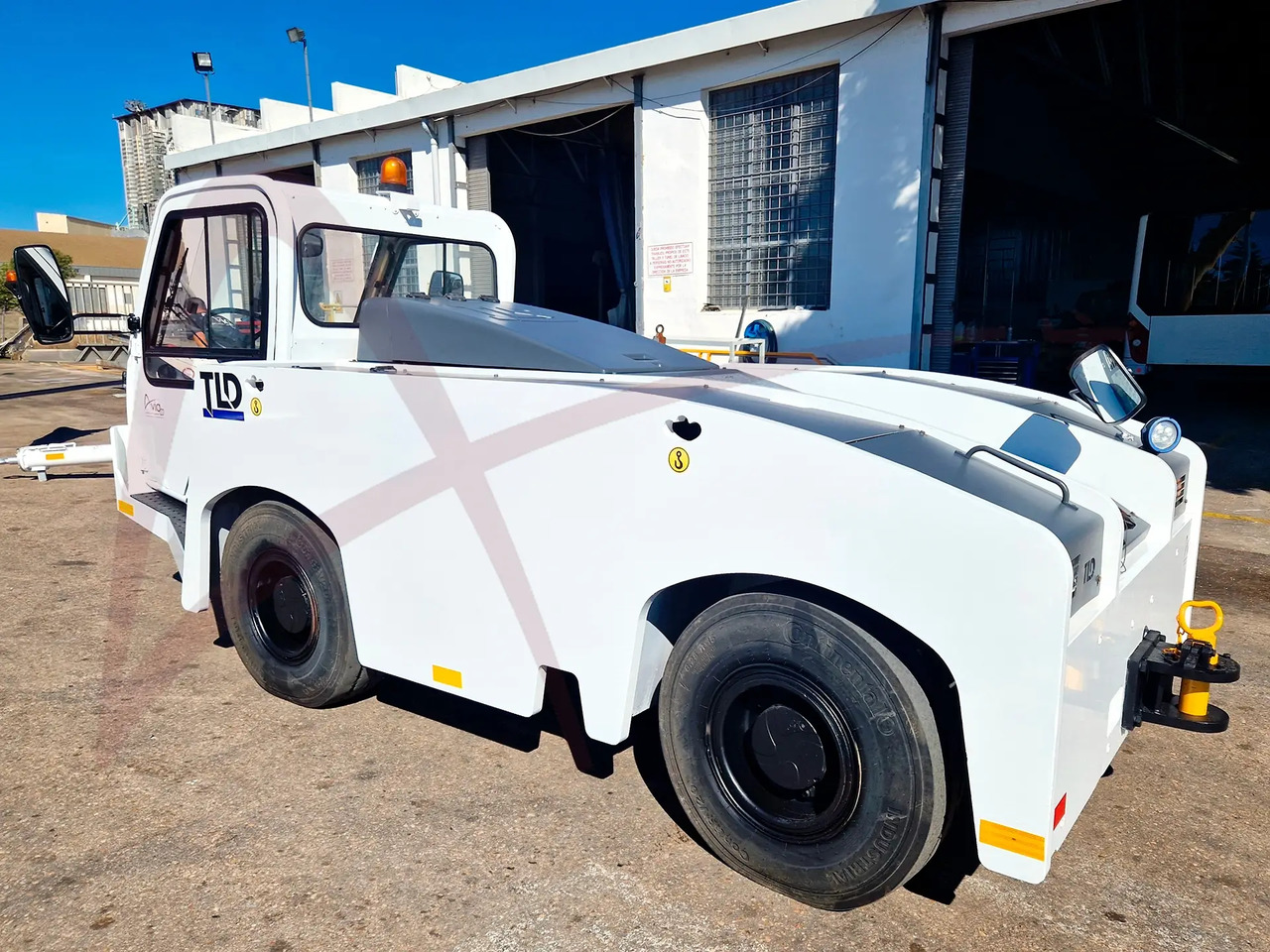

The TMX-150 aircraft towing tractor, with a maximum draw bar pull up to 12 000 daN (~27,000 lbs), is designed to perform push and pull operations on narrow and medium body A/C, (as CRJ100 to 900ER, ATR 42/72, BAE 146, Embraer 135 to 190, Saab 2000, Fokker 70/100, B717, B727, B737, B757, B767-200 to 300ER, DC9 and MD80 to 95, A318, 319, 320, 321, A300 and A310, and other aircraft). Its ergonomic design provides agility and visibility. TLD’s high standards of build and

component quality make the TMX-150 a durable and reliable tractor.

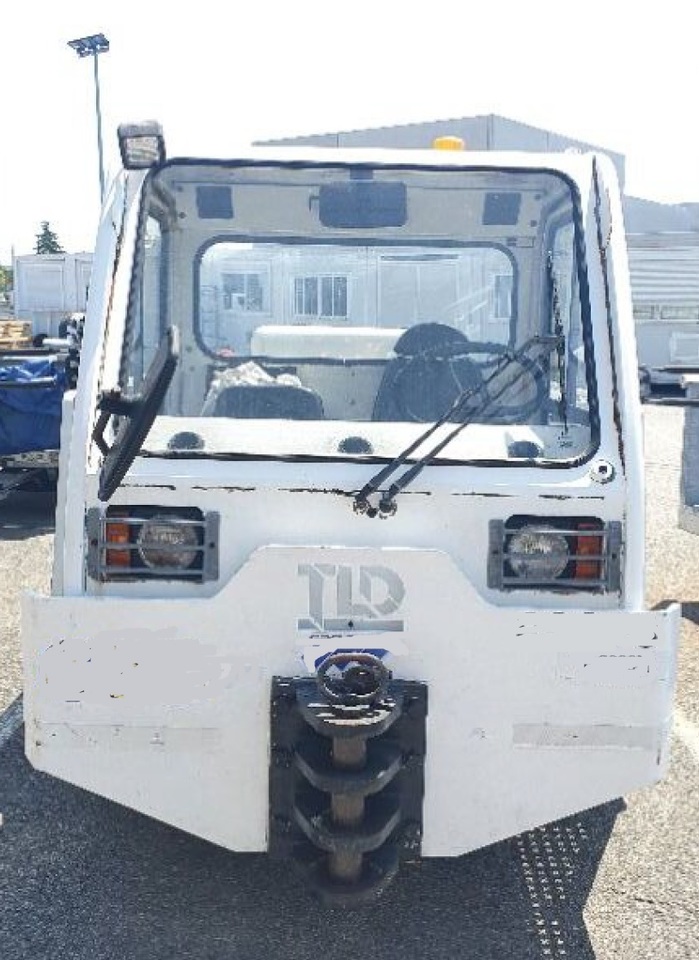

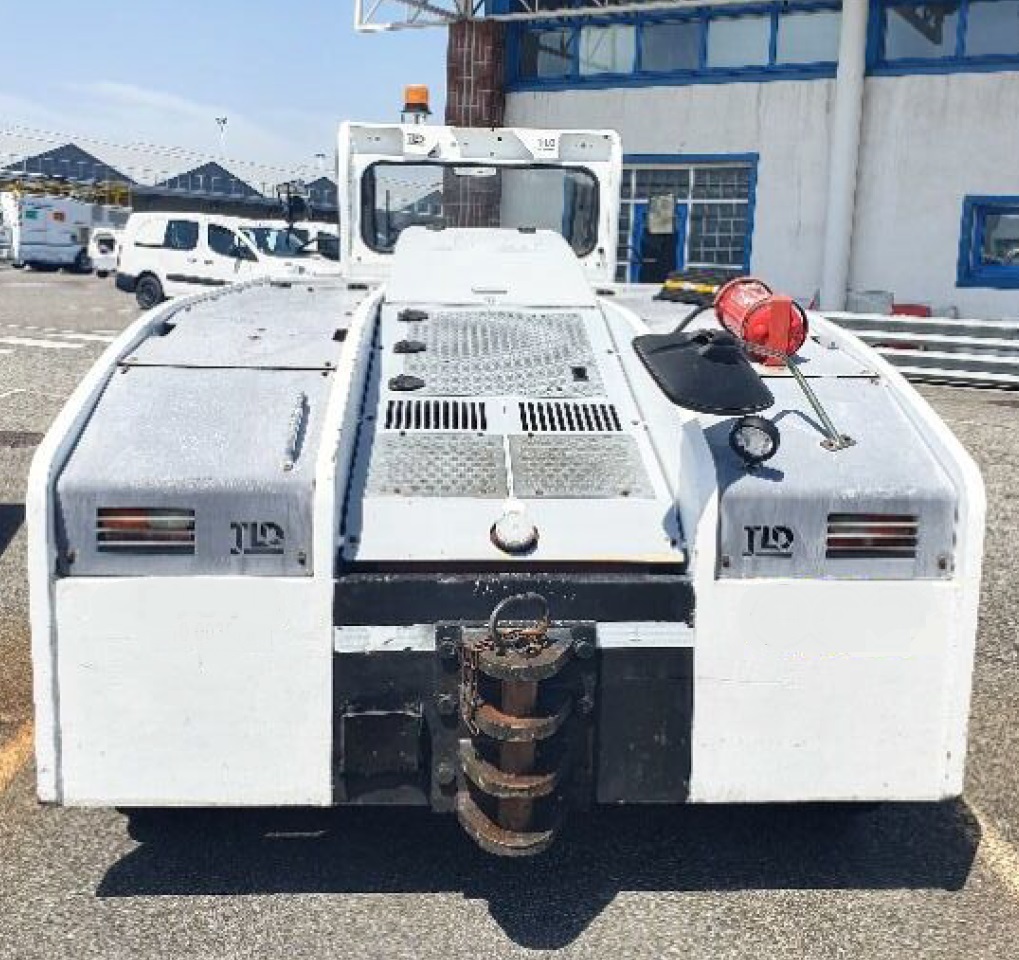

Tow hitch : Front and rear hitch with 70 mm (2.7″) diameter tow pin. Manually controlled (1 level)

Tyres : 8.25 R 15 or 315/70 R15 depending on versions

Fuel tank capacity : 83 liters (22 US Gal)

Hydraulic tank capacity : 80 liters (21 US Gal)

Cab : suspended driver seat, standard seat for passenger

Standard features

Engine : 4 cylinders turbo diesel engine

Transmission : CLARK T12000 powershift transmission with torque converter, 4 forward and 3 reverse

Maximum Speed : (empty)

Forward 25 kph (15.6 mph)

Reverse 20 kph (12.5 mph)

Front axle : DANA SPICER steering and driving axle with leaf spring suspension

Rear axle : DANA SPICER steering and driving axle

Brake (Service) : On 4 wheels, hydraulically powered immersed wet disc brake system, dual circuit

Brake (Parking) : Immersed wet disc brake on 2 front wheels, mechanically actuated

Steering : Hydraulically-powered steering 4 wheels
