جديدة جرافة ذات عجلات تلسكوبية Qingdao Promising Telescopic Loader with CE ZL20

2.0T Capacity Telescopic Loader with CE ZL20

Applications:

The telescopic wheel loader features a telescopic boom for additional height, added versatility and greater production. This wheel loader with telescopic arm offers excellent maneuverability, overall machine stability and the telescopic boom provides extra reach for stacking and dumping.

Features:

1. Telescoping boom for extra reach, stacking and dumping height.

2. Operator station offers a spacious and functional layout for operator comfort.

3. Hydraulically operated quick-hitch allows for efficient changing from one accessory to another without leaving the operator's station.

4. All wheel steer and rigid frame provide excellent maneuverability and constant payload stability even when turning.

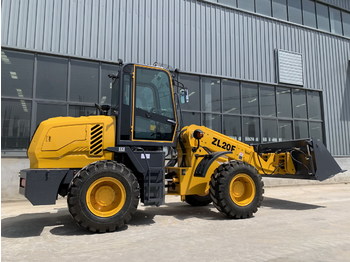

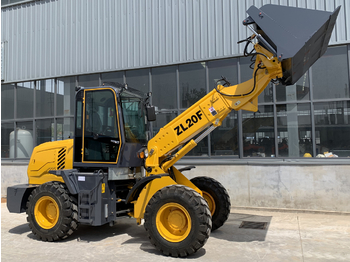

2.0T Telescopic Boom Wheel Loader ZL20

Technical Specifications:

1. Rated Load: 2000kg

2. OperatingWeight: 5750kg

3. Rated Bucket Capacity: 1.0CBM

4. Bucket Width: 1800mm

5. Max. Breakout Force: 60KN

6. Max. Gradeability: 30Degree

7. Dumping Height (fully raised height to the pin): 4500mm

8. Raising Time: Less than 5.0s

9. Overall Dimensions (L x W x H): 6100*1870*2720mm

10. Min. Turning Radius: 4500mm

11. Engine Model: YUNNEI YN38

12. Engine Type: Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine

13. Rated Power of Engine: 60kW

14. Rated Speed of Engine: 2400rpm

15. Min. Fuel Consumption Rate: 180g/kW.h

16. Hydraulic Torque Converter: ZL280 Integrated Hydraulic Torque Converter

17. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed

18. Max. Speed: 25km/h

19. Model of Axle: ZL20 Hub Reduction Axle

20. Wheel Tread: 1470mm

21. Wheel Base: 2430mm

22. Drive Mode: 4-wheel Drive

23. Hydraulic System Working Pressure: 20MPa

24. Hydraulic System Working Pump Type: Gear Pump

25. Service Brake: Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels

26. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake

27. Tyre Type Specification: Pneumatic Tire 16/70-20 (Width: 307mm, Diameter: 831mm)

28. Front Tyre Pressure: 0.40Mpa

29. Rear Tyre Pressure: 0.35Mpa

Optional Engines: 60kW DONGFANGHONG YT4B2-24 Engine

Optional EURO5 Engine: 55kW YUNNEI DEF20CAF4 Engine

Optional Parts and Functions:

Canopy, Open Cabin, FOPS/ROPS, Tilting Cabin, Hydraulic Joystick, Air Conditioner, Colour Coded Electronic Gear Shift Button on Joystick, Gear Shift Lever with Electronic Control, Reversing Camera, Extra Hydraulic Lines, Rear Hydraulic System, LED Lights, and Floating Function, etc.

Note:

1. The technical specifications are for standard models only.

2. Other optional accessories and requirements are available upon request.

3. All photos are for reference only. Machines shown may include optional parts.

4. All specifications and design characteristics are subject to change without prior notice.

5. For all available loader attachments, please refer to our Loader Attachments Catalogue.

6. Equipped with hydraulic quick coupler, your wheel loader can be easily and conveniently switched from one attachment to another to save your time and labor. Equipped with skid steer (Bobcat) quick coupler or Euro Standard quick coupler, you can use all your existing attachments with our wheel loader.
