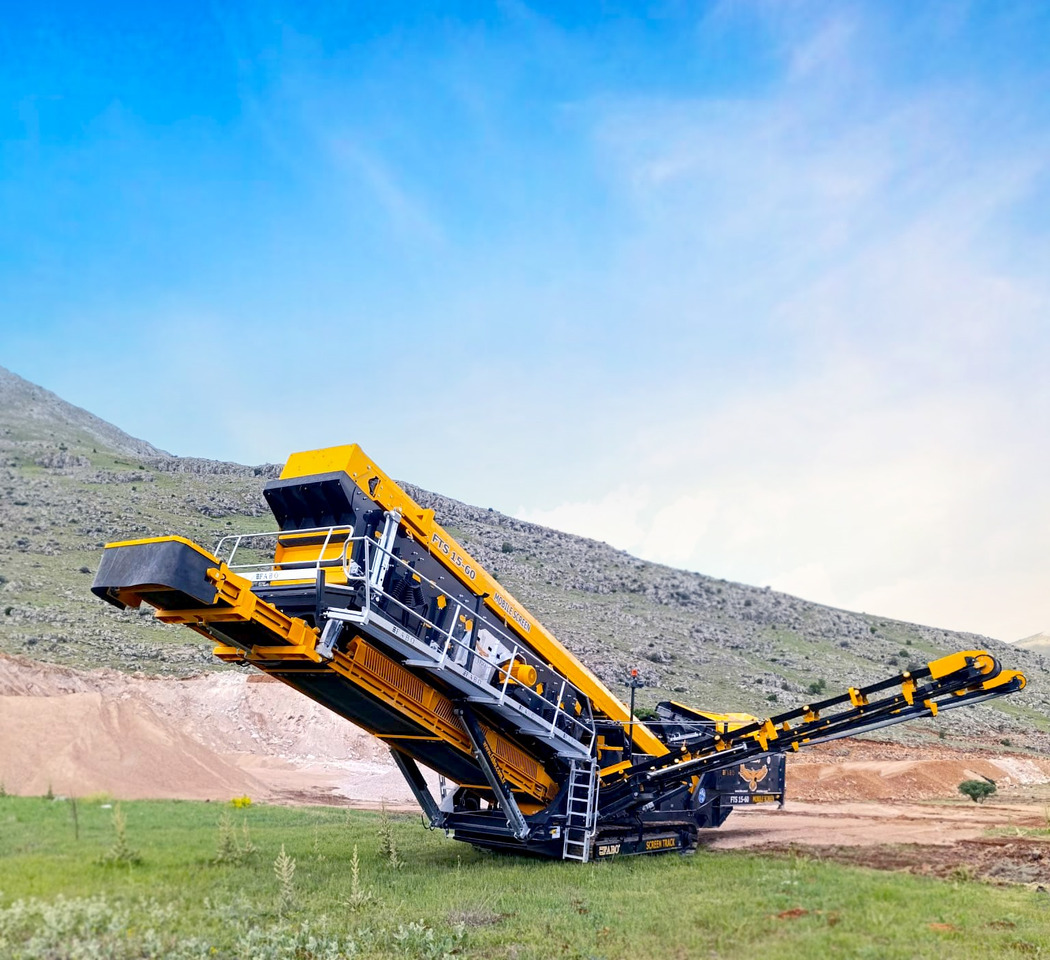

جديدة فرازة FABO mobile screen-mobile screening

• All of our products are made with care and covered for 1 year warranty!
• Installation and Operator Training FREE

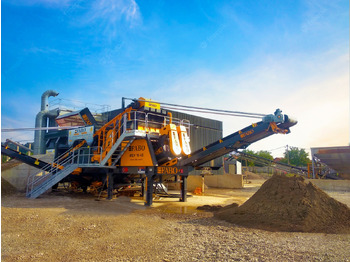

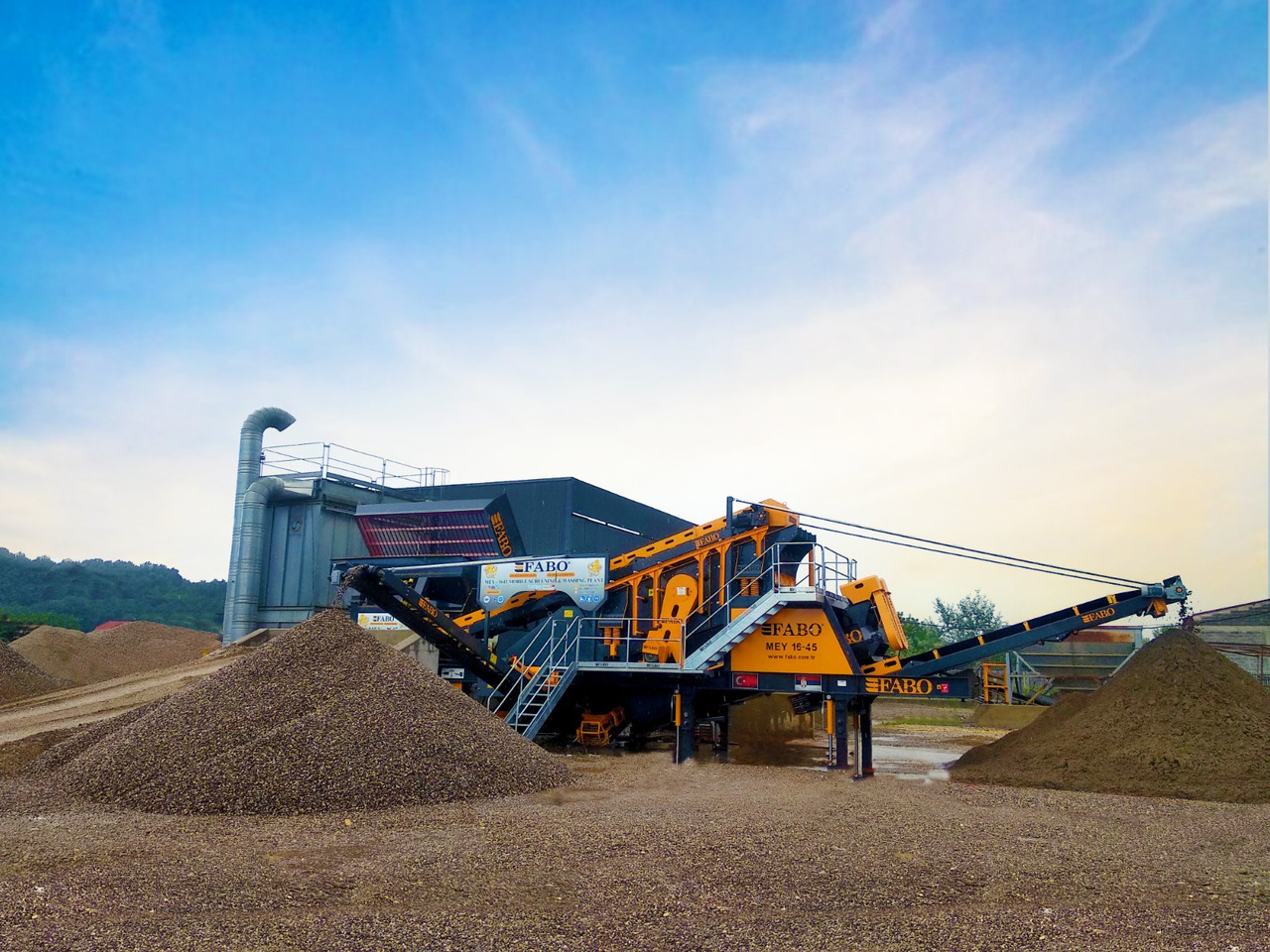

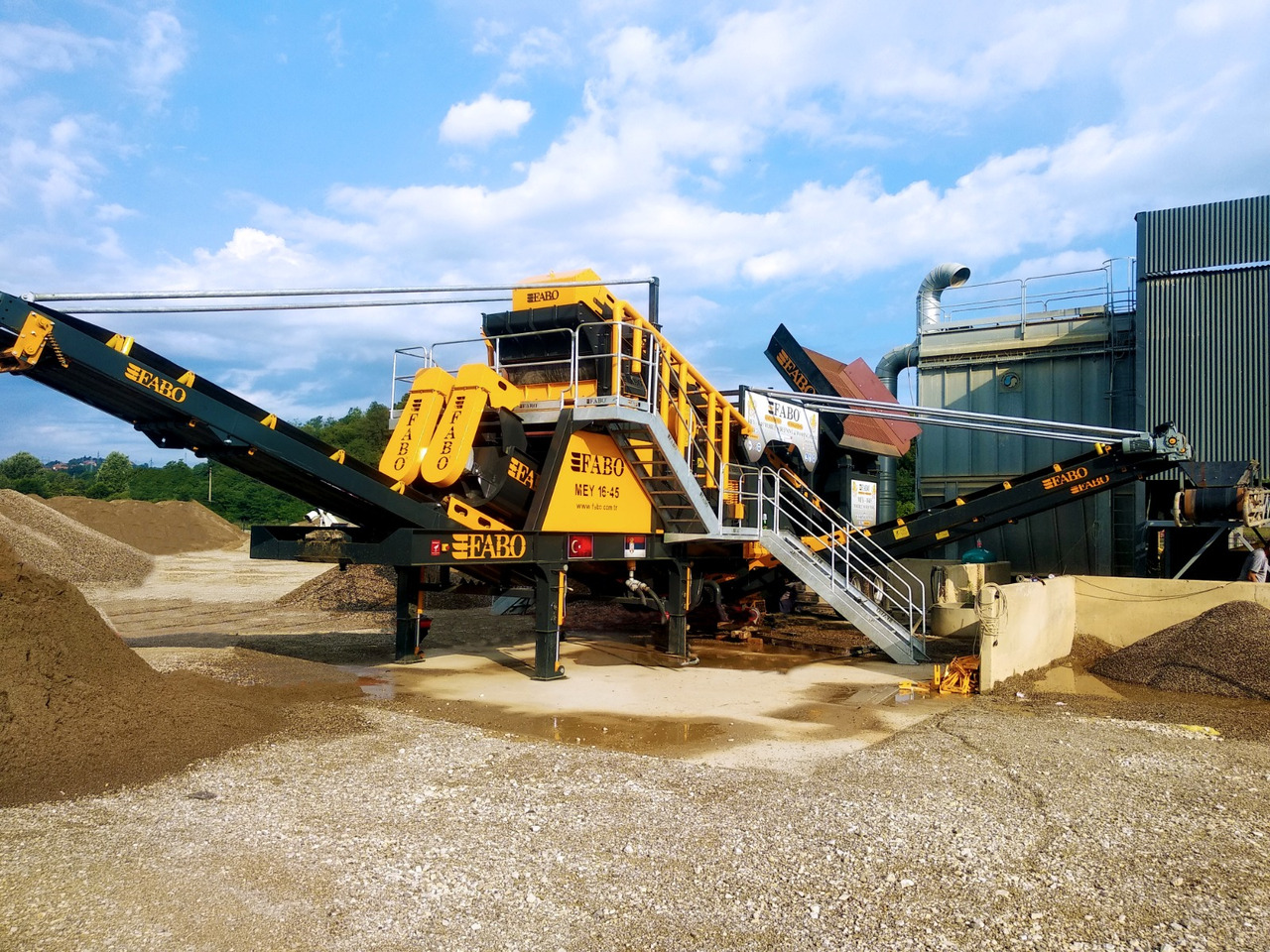

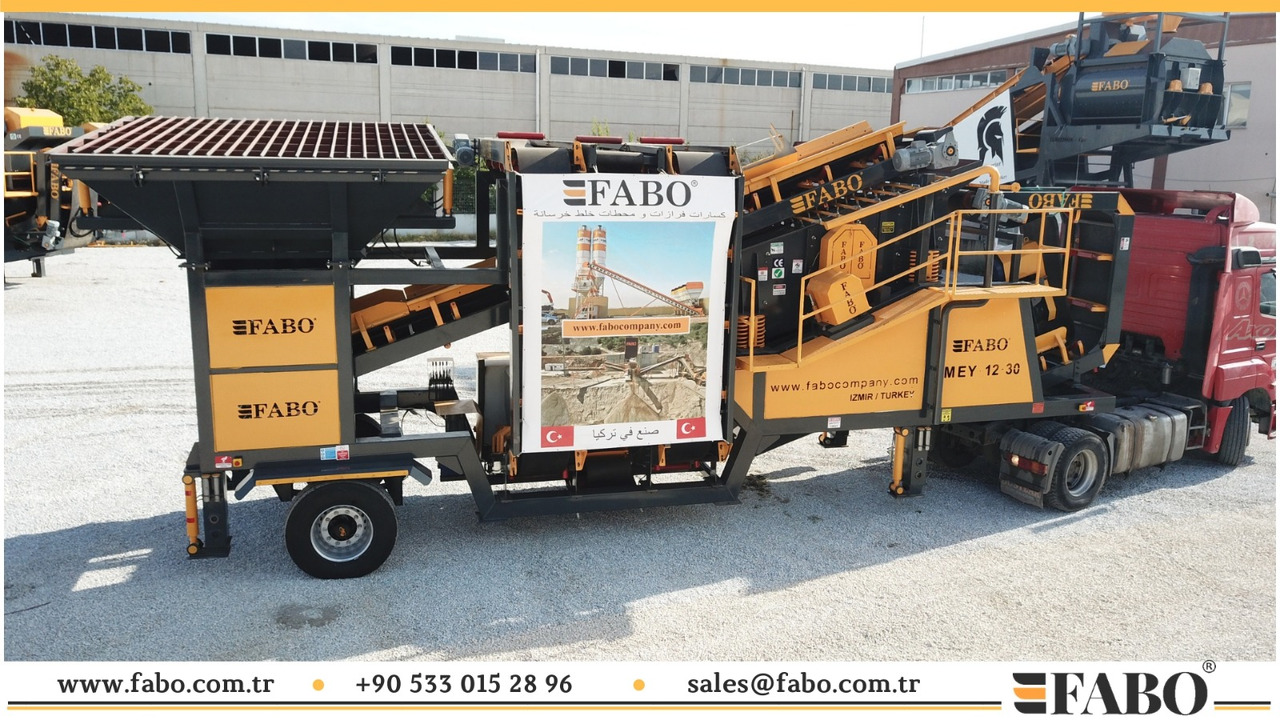

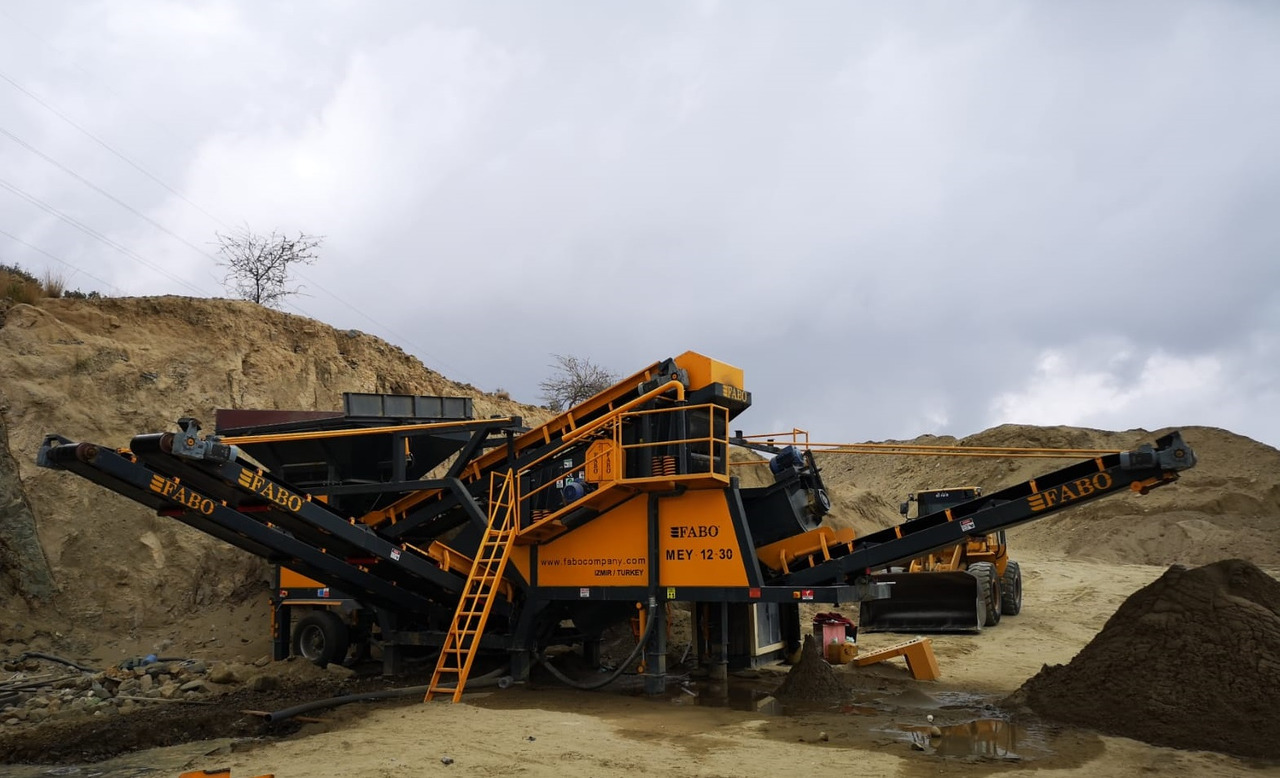

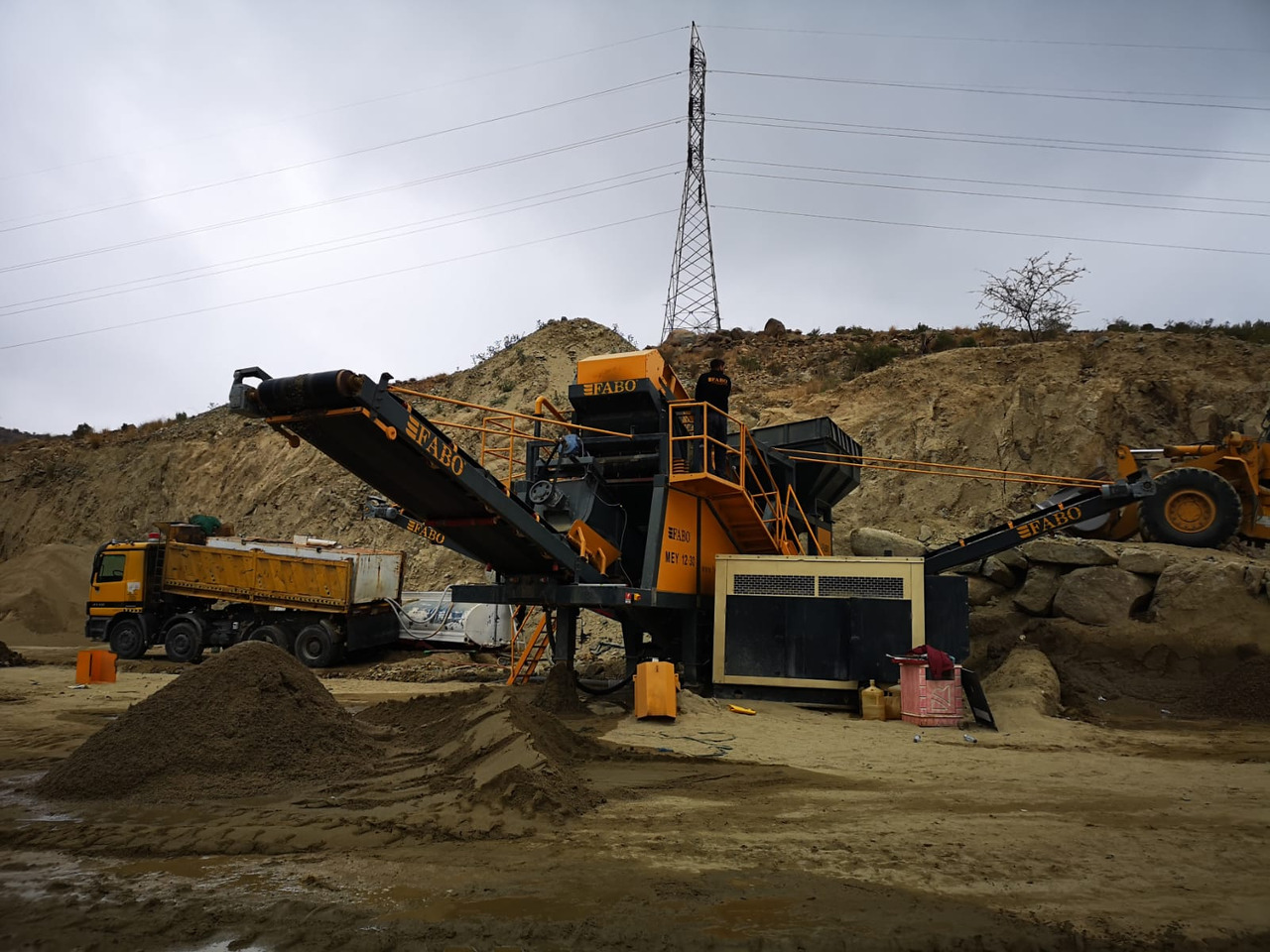

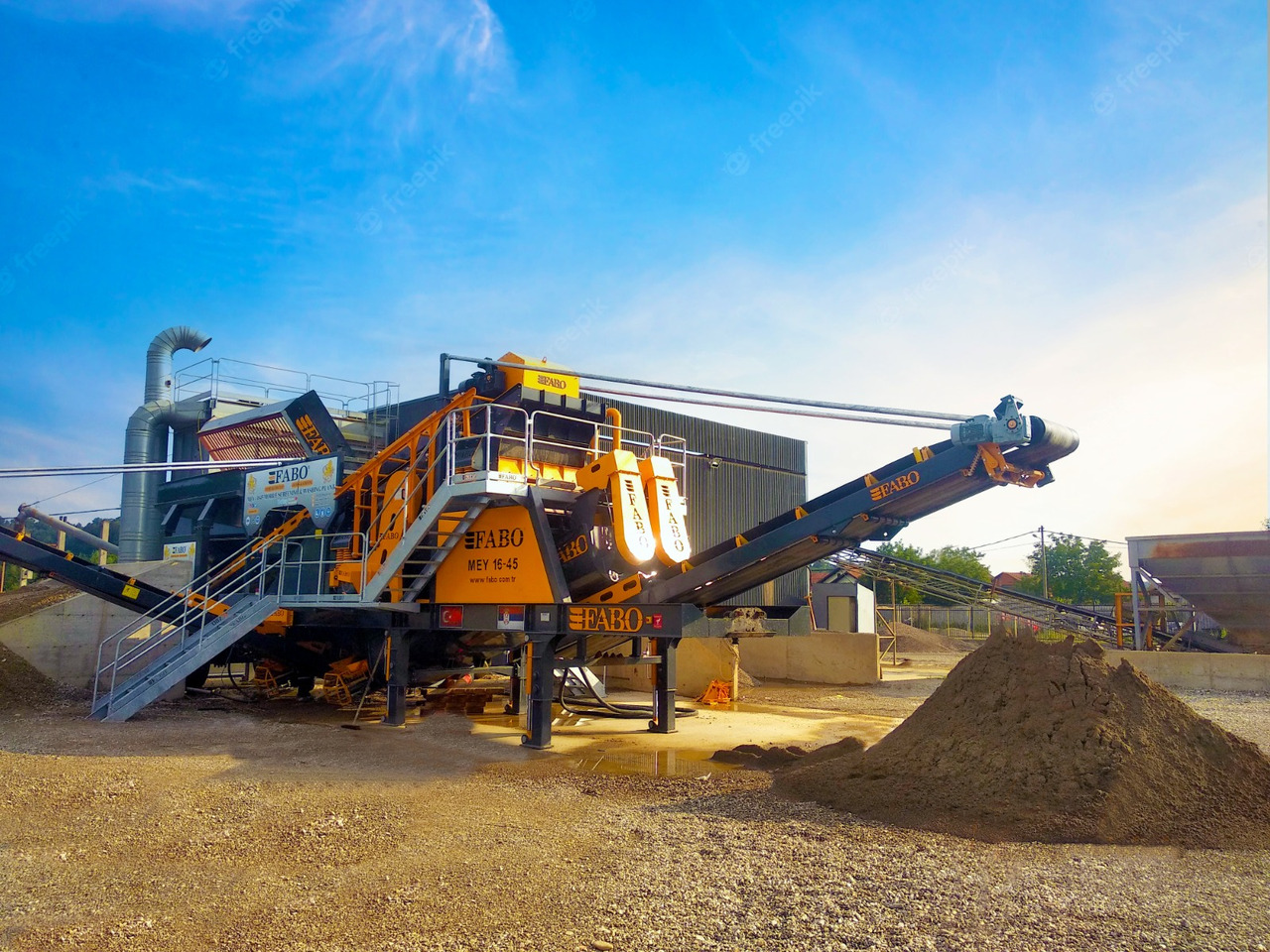

FABO MEY Series mobile sand screening and washing plant is an ideal solutions for the classifying and washing of materials which was provided as pre-crushed.

Most important advantage of plant is having all equipment on only a single chassis. Transportation can be done by only one truck.

TECHNICAL SPECIFICATIONS:

- Hopper: 8 m3

- Plant Dimensions: 13500x4500x3600 mm

- Production Capacity: 120-200 Tons Per Hour

- Screw Washer Size: 600x6000 mm Double Helix

- Vibrating Screen and Deck: 1600x4500 (4 decks)

- Total Motor Power: 68 Kw

- Generator (optional): 130 kvA

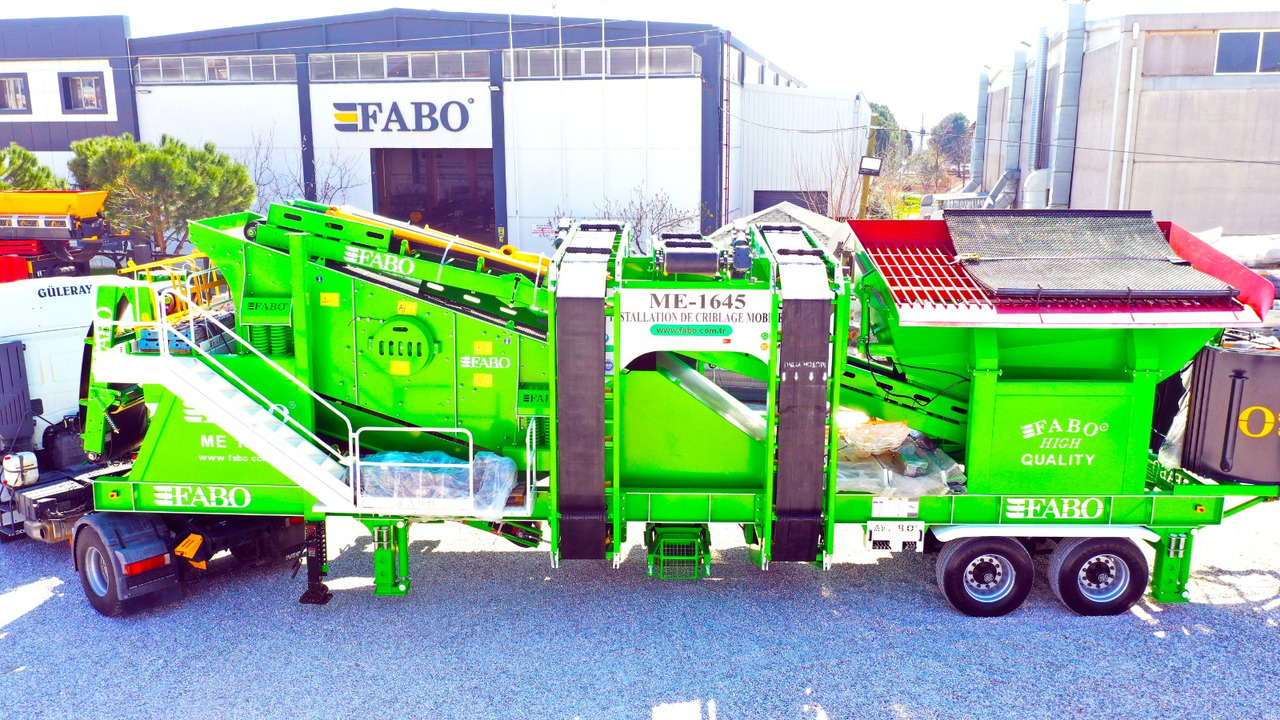

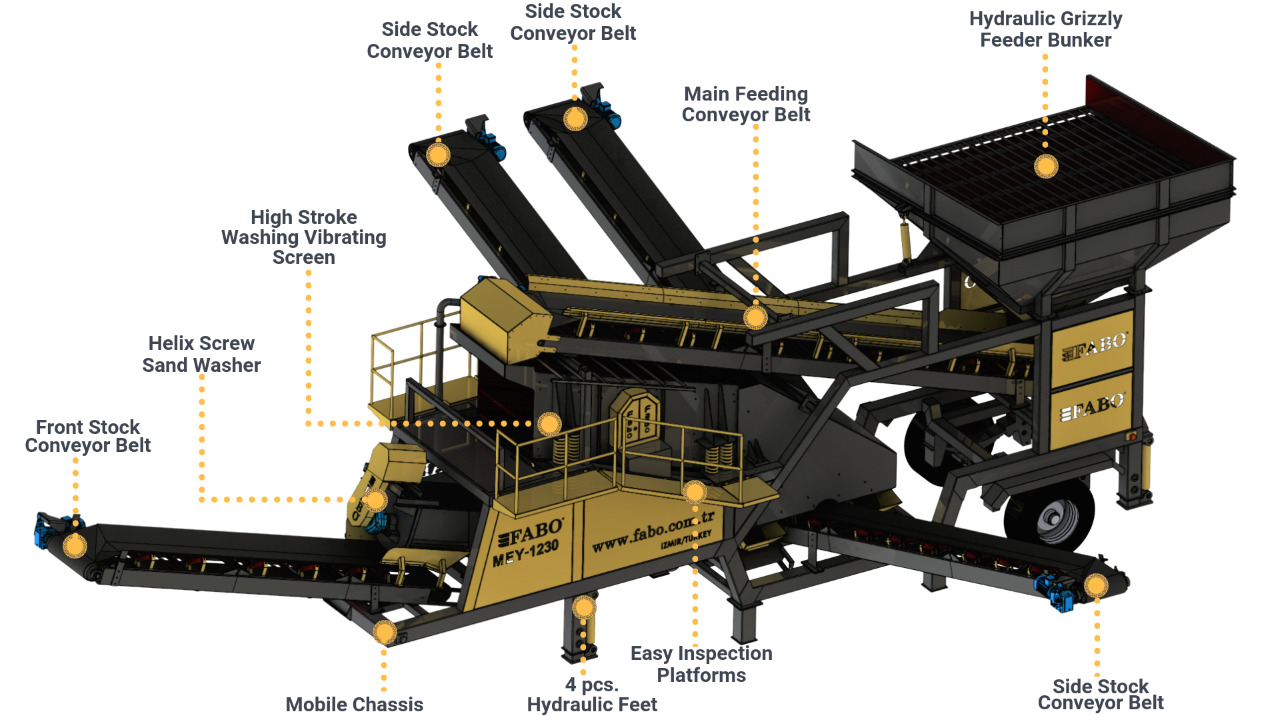

MEY-1645 IS A COMBINATION OF:

• Bunker(Hopper)

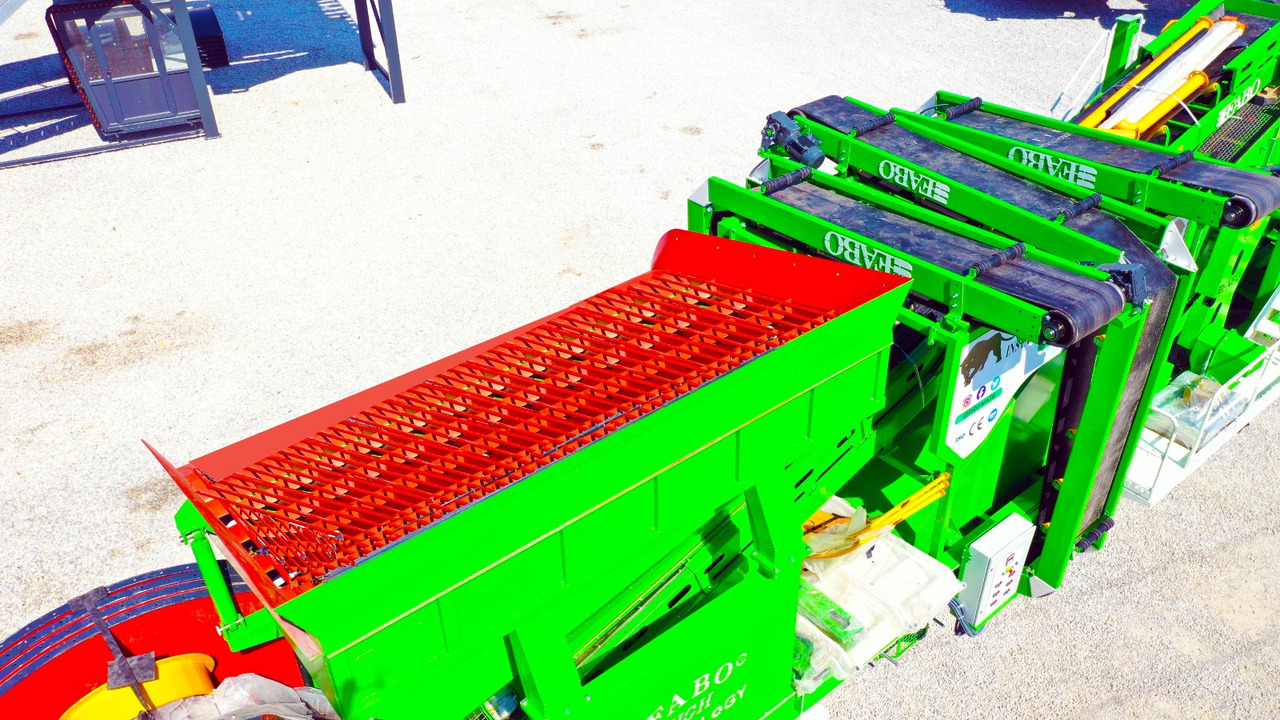

• Vibrating Screen with Washing Nozzles

• Double Helix Screw Washer

• Folding type feeding and stock conveyor belts

• Hydraulic feet

• Mobile Chassis with axles and tires

• Fully Automation System

• Easy walking platforms for maintenance

• Diesel Generator (Optional)
