جديدة كسارة متحركه Constmach Mobile Jaw Crushing Plant With Capacity Of 60-80 Tons

You can call us 24/7 for mobile jaw crusher plant for sale.

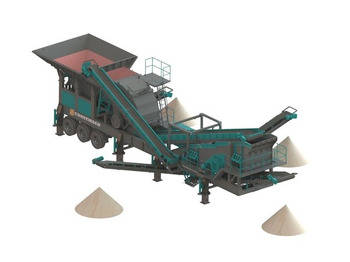

CONSTMACH JC-1 Mobile Jaw Crusher is an excellent solution for crushing the hardest and most abrasive rocks, especially stones with a high ratio of Silica (SiO2), such as granite, basalt and gabbro. This mobile stone crushing plant is a product of sophisticated design and engineering, manufactured with excellent craftsmanship using the highest quality materials and long-lasting components.

The JC-1 attracts attention with its production capacity of 60 to 80 tons per hour. This capacity may vary depending on the degree of hardness of the material to be broken. The maximum feeding size is 610 x 380 mm. The plant is equipped with a cone crusher of the Metso HP 100 or equivalent model, and 3 or 4 different fractions can be obtained simultaneously. When it is necessary to increase the ratio of thinner material or to obtain a more cubic product, the plant can be equipped with a V-70 mobile sand making plant containing a VSI crusher. In this case, the general configuration is called JCV-1.

If necessary, an electric generator can be adapted to the chassis of the plant. The JC-1 offers a user-friendly combination and promises easy assembly/installation features to its operators. The facility can be made ready for use in a very short time. If necessary, the feed hopper and stock conveyors can be equipped with a hydraulic opening mechanism, and in this case the plant can be put into operation without the need for external equipment such as a crane or loader.

The JC-1 Mobile Jaw Crusher provides high performance with a production capacity of 60-80 tph and a total motor power of 200 kW. The total weight of the plant is 60 tons and it is equipped with hydraulic opening legs on two chassis. Its dimensions offer ease of transport and use, it measures 10(L) x 3.1(W) x 4.4(H) and 17(L) x 3.8(W) x 4.4(H) meters. This mobile crusher offers high efficiency and reliability in demanding projects.

CONSTMACH JC-1 Mobile Jaw Crusher is an ideal solution for January and mining applications. This superior mobile stone crushing plant provides high-quality material production by easily breaking even the hardest rocks. With its user-friendly features and high performance, the JC-1 will be indispensable for your projects.

JC-1 - Mobile Jaw Crusher Technical Specifications

Production capacity 60-80 tph

Maximum Feeding Size 610 x 380 mm

Feeding Height 3.8 meters

Main Configuration Jaw Crusher + Cone Crusher + Vibrating Screen

Total Motor Power 200 kW

Electricity Generator Requirement 400 kVA

The weight of the plant is 60 Tons (the total weight of the two chassis

The dimensions of the facility are 10(L) x 3.1(W) x 4.4(H) meters 17(L) x 3.8(W) x 4.4(H) meters

Chassis Type Double chassis on wheels equipped with hydraulic drop-down legs.
