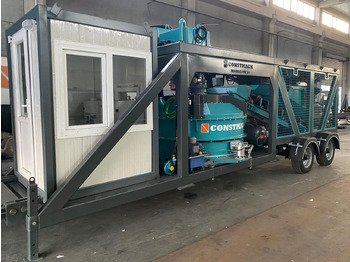

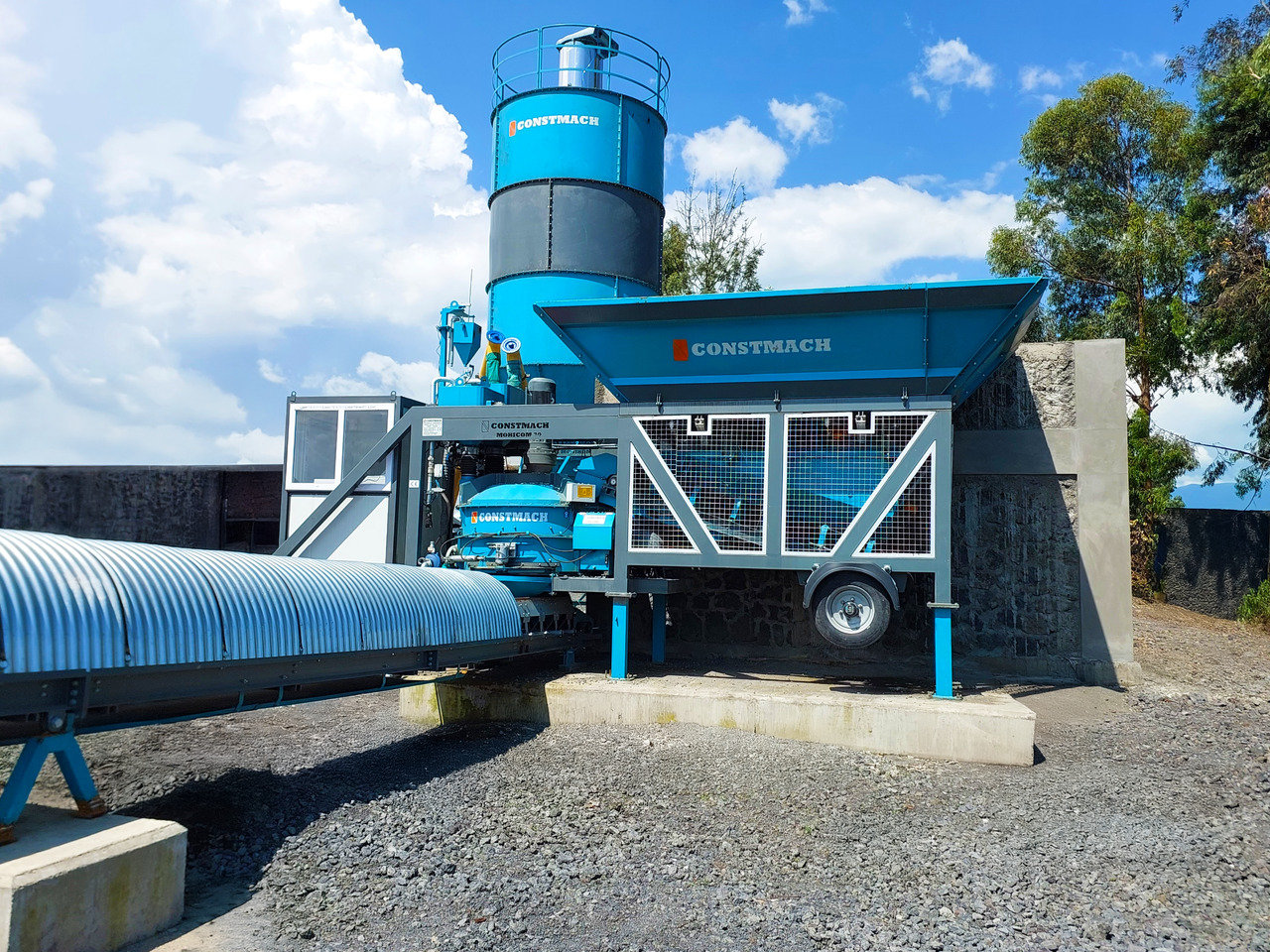

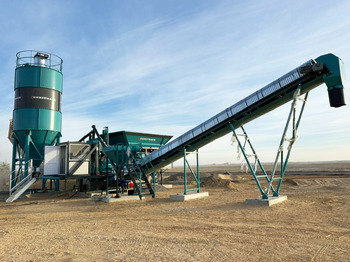

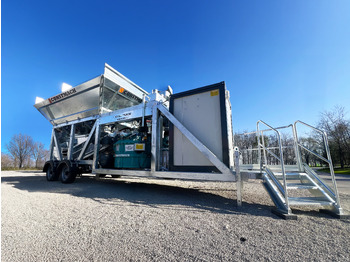

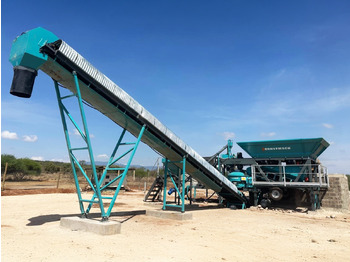

جديدة مصنع الخرسانة Constmach Mini Mobile Concrete Batching Plant 30 m³/h

You can call us 24/7 for mini mobile concrete batching plant for sale.

Adapting to the dynamic project requirements of our time, CONSTMACH MOBICOM 30 offers superior efficiency and mobility in your projects. This model is ideal for those who want to provide operational flexibility, especially without the need for large residential areas. MOBICOM 30, only one 40 ft. it is safely shipped in containers and on-site installation requirements are minimal. Since it does not require a mobile crane, the installation process is fast and cost-effective.

This power plant, which can adapt to all kinds of projects, allows uninterrupted operation even under difficult conditions by maintaining its stability during displacement. The compact structure of the power plant offers an effective production capacity despite its low space footprint: 30 m3 per hour. This capacity accelerates your projects by saving both time and cost.

Since the mixer level is not higher than the ground, the concrete produced can be transported easily and quickly. This feature speeds up your workflow even more, allowing your projects to be completed in a shorter time. In addition, all control operations are managed with a fully automated system, thus preventing operational error and ensuring continuous quality control.

Offering practical solutions to current challenges, CONSTMACH MOBICOM 30 stands out not only for its high performance, but also for its low investment and operating costs. If you are also looking for reliable, fast and economical solutions for your projects, MOBICOM 30 will be an excellent business partner for you. Don't wait any longer to meet this special product designed to make your business more efficient.

Mobicom 30 Mobile Concrete Batching Plant Technical Specifications

general features

Transport capacity 30 m3/h

Shipping Position Size 8(L) x 2.3(W) x 2.5(H) meters

Weight 8.5 tons

Total Motor Power 47 kW

Required Electricity Generator 70 kVA

Mixer Options Pan - Single Shaft - Planet

The required area for operation is 200 m2

technical specifications

Aggregate Stock Hopper4 x 6 m3

Aggregate Weighing Hopper0.75 m3

Aggregate Transfer Hopper 800 x 15.250 mm

Mixer Wet Concrete Volume 0.5 m3

Cement Weighing Hopper 300 kg

Water Weighing Hopper 200 lt

Additive Weighing Hopper 20 lt

Air Compressor 300 lt, 4kW

Cement Silo Decking capacity between 50 and 200 tons is an option

Control type FULLY AUTOMATIC
