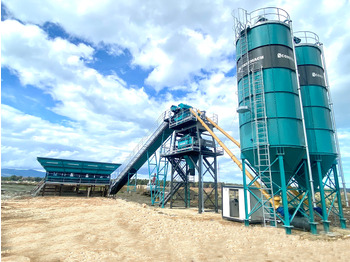

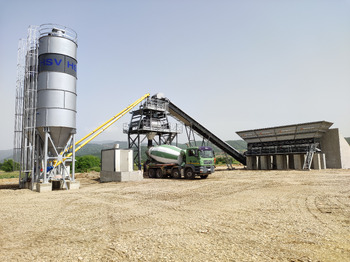

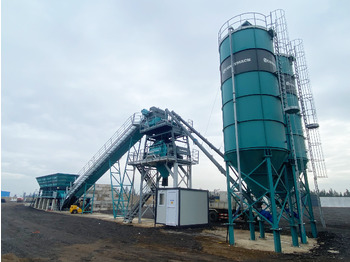

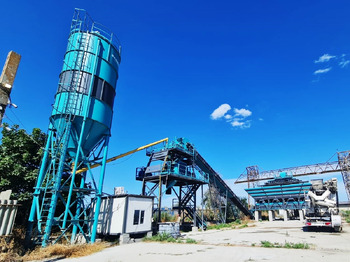

جديدة مصنع الخرسانة Constmach 100 m³/h Stationäre Betonmischanlage

You can call us 24/7 for stationary concrete batching plant for sale.

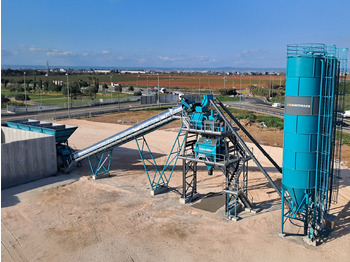

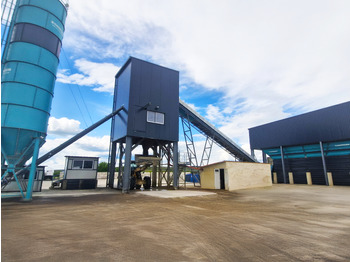

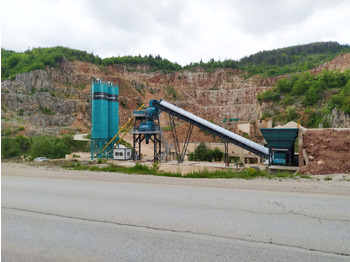

Meet our Stationary-100 stationary concrete batching plant model; we offer unmatched reliability and efficiency for your high capacity operation needs. With a production capacity of 100 m³/h, this plant is one of the leading models in its class and stands out by combining continuous performance with cost-effectiveness. Weighing 48 tons, this plant does not require a large installation area to meet large-scale production demands; only 700 m² of working space is sufficient.

This plant stands out not only in terms of size but also in terms of intelligent engineering. Equipped with a range of mixer options including Pan, Single Shaft, Twin Shaft and Planetary, the Stationary-100 offers the flexibility to adapt to different material mixing needs. Each design has been carefully selected to improve mix quality and reduce processing time.

Power is another strong point of the Stationary-100. With a total engine power of 175 kW and a generator requirement of 250 kVA, uninterrupted and efficient operations are guaranteed and the high power is easily managed. Furthermore, a fully automated control system completes the machine; simplifying operations, giving you peace of mind and the freedom to focus on other aspects of your project.

Storage is generously provided with cement silo capacity options from 75 to 500 tons, so you can scale operations according to the demands of the project. The plant also offers comprehensive aggregate processing solutions with dedicated bays for efficient, precise weighing and storage.

Invest in the Stationary-100 | Stationary Concrete Batching Plant to add speed, efficiency and compatibility to your projects. This machine is not just a tool, it's a growing partnership with you - every mix is a step towards completing your projects on time and on budget.

Stationary 100 Stationary Concrete Batching Plant Technical Specifications

GENERAL FEATURES

Production capacity 100 m³/h

Weight 48 tons (excluding cement silo)

Total Engine Power 175 kW

Electric Generator Requirement 250 kVA

Mixer Options Pan - Single Shaft - Double Shaft - Planetary

Area required to operate 700 m²

TECHNICAL SPECIFICATIONS

Aggregate Stock Hopper 4 x 25 m³

Aggregate Weighing Hopper 3 m³

Aggregate Weighing Conveyor 1.000 x 11.100 mm

Aggregate Transfer Conveyor 1.000 x 26.000 mm

Aggregate Holding Hopper 3 m³

Mixer Wet Concrete Volume 2 m³

Cement Weighing Hopper 1.200 kg

Water Weighing Hopper 600 lt

Additive Weighing Hopper 50 lt

Air compressor 500 lt, 5.5 kW

Cement Silo 75 tons to 500 tons capacity option

Control type FULL AUTOMATIC
