جديدة خزان الأسمنت Constmach 75 Ton Capacity Cement Silo

You can call us 24/7 for the 75 ton cement silo for sale.

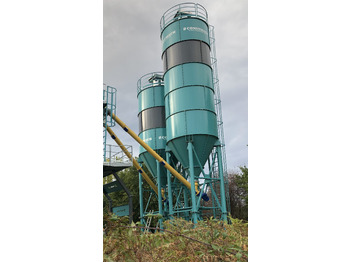

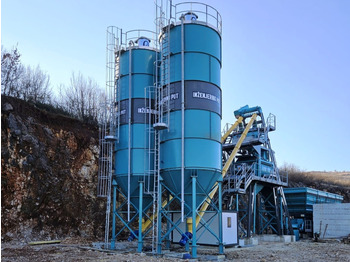

Our CS-75 model, which perfectly meets your cement storage needs, stands out with its features combined with industrial durability and superior performance. This model allows you to store large amounts of your material safely, especially with its 75 ton capacity. with a volume of 58 m3 and a height of 15,880 mm, it has been designed to meet your high-volume storage requirements.

With its steel construction and 3060 mm diameter, the CS-75 offers long-term and reliable use. It provides permanent stability with features such as four sturdy steel legs, 20 mm thick sheet metal foot plates, and 100 mm steel C channel tapered track support. In addition, the fact that each component is made of high-quality materials increases the resistance of this silo to harsh conditions.

weighing 6360 kg, the CS-75 also attracts attention with its design that offers easy installation and maintenance. Additional features such as the charging tube and maintenance platform provide ease of use, while the internal Octagon and external man hole make cleaning and maintenance operations practical. While the high-quality structure of the top cover material protects the contents of the silo against external factors, security has been kept at the forefront with every detail, including roof arrests.

Our products are specially produced according to the projects approved after the structure analysis to be carried out, thus fully responding to the unique needs of each user. CS-75 brings flexible solutions to different needs by offering wide usage areas without being specific to any sector. Manage your storage processes with confidence with this product that pays for your investment.

Technical Specifications of CS-75 - 75 Ton Cement Silo

Silo Capacity 75 tons, 58 m3

Silo Height 15880 mm

Silo Diameter ø 3060 mm

The Amount of Silo Legs is 4

Silo Outlet Diameter

Number of Components 98

Silo Weight 6360 kg

Silo Foot Material 219x5 mm, steel pipe

Silo Foot Supports npl 80 mm corner iron

Silo Foot Plates 20 mm sheet metal

Taper Part Support Material 100 mm steel c channel

Conical Part Material st - 37 - 6 mm metal sheet

Silo Body Material st - 37 - 5 mm metal sheet

Silo Top Cover Material st - 37 - 4 mm metal sheet

Charging Pipe 4" steel pipe up to the silo leg

Internal Manhole is available

External Man Hole is available

The Silo Roof is included in the arrests

The Maintenance Platform is available

Structure Analysis is carried out for the silos and the production process is carried out depending on the approved projects.
