جديدة ماكينة البلوك Constmach Machine à Fabriquer des Briquettes BS-42 (Machine à Fabriquer des Blocs de Béton)

You can call us 24/7 for the briquette making machine (concrete block making machine) for sale.

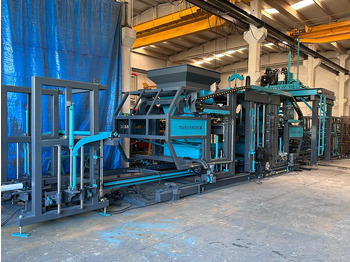

​The BS-42 briquette making machine is a solution that meets the needs of the industry with its rich features and superior design. This machine provides superior quality briquette production every time with a vibration impact force of 32000 kg and a vibration force of 48 kW. with a vibration cooling capacity of 11000 m3/h and a hydraulic cooling capacity of 120 lt/min, it offers stable performance even during long working hours.

The BS-42 has a powerful pump power of 31.5 kW and two robot pumps of 15 kW, these features maximize the production speed while increasing energy efficiency. The compact dimensions of the machine (2.1 x 8.5 x 2.5 m) easily adapt to all types of business areas and allow you to save space.

The locked paver mold produced by CNC machining increases the product quality and minimizes possible errors. With two mixer options (1500 dm3 and 500 dm3), the BS-42 can quickly respond to different mixing needs. It offers continuous and uninterrupted production opportunities with its powerful material handling conveyors and a large cement silo with a capacity of 50 tons.

This briquette making machine is an excellent investment for businesses looking for high efficiency and durability. It appeals to every user with its easy operation and advanced control system. The BS-42 allows you to create more value by increasing the production capacity of your business.

Technical Characteristics of BS-42 Briquette Making Machine

Vibration Impact Force 32000 kg

Vibration Power 48 kW

Vibration Cooling Capacity 11000 m3/h

Hydraulic Cooling Capacity 120 lt/min

Pump Power 31.5 kW

Robot Pump Power 15 kW

Collecting Robot Motor Power 15 kW

Machine Dimensions 2.1 x 8.5 x 2.5m

PLC: Contactor Moeller Thermal Siemens Touch Screen

Locked paver die Oxygen cutting and CNC machining

Thick Mortar Conveyor 3 kW

Thin Mortar Conveyor 3 kW

Thick Material Conveying Conveyor 4 kW

Thin Material Conveying Conveyor 4 kW

BS1500 MIXER: Mixing Capacity 1500 dm3 60 kW

BS500 MIXER: Mixing Capacity 500 dm3 15 kW

Thick Material Sand Bunker 20 m3 x 3 pcs

Fine Material Sand Bunker 8 m3 x 2 pcs

Thick Material Weighing Conveyor 5.5 kW

Fine Material Weighing Conveyor 3 kW

Thick Mortar Cement Weighing Volume 600 kg

The Weighing Volume of Fine Mortar Cement is 300 kg

Cement Silo 50 tons: Filter 24 m2 WAM, Safety Valve: WAM

Cement screw 8m: Motor Power 4kW, Tube diameter: 219mm

Water Weight 300 kg
