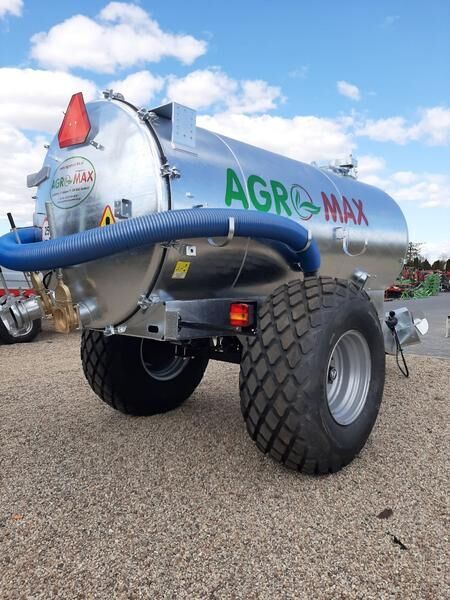

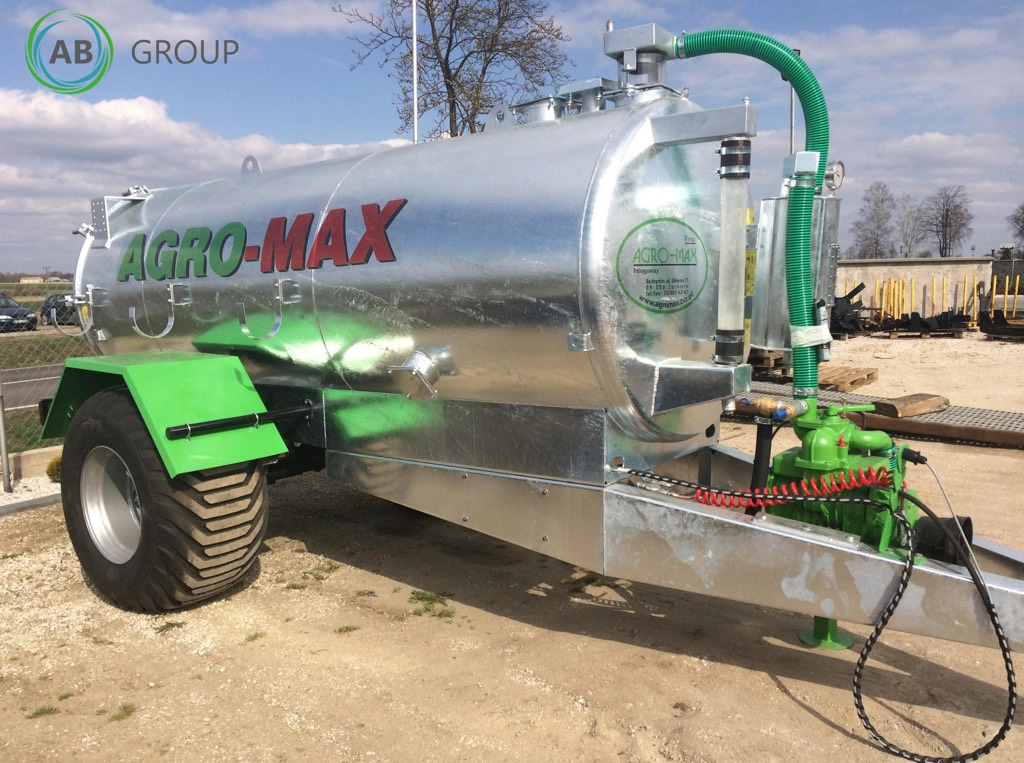

صهريج السماد السائل Wóz asenizacyjny 10000 l Agro-Max MAX 10.000-1/S

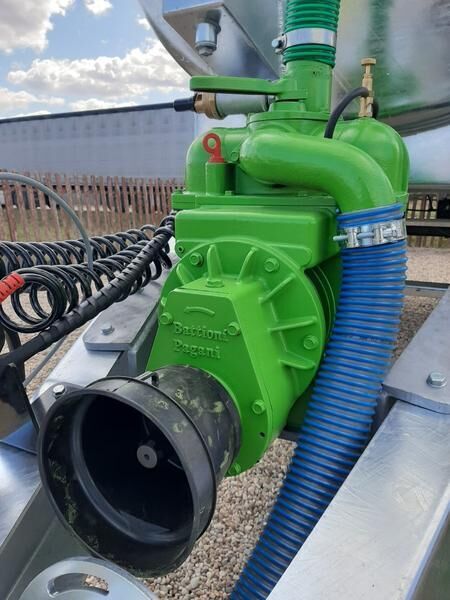

o Length 7300 mmo Width 2800 mmo Height 3300 mmo Tyres: 2 X 28L/26 (without mudguard),(or of such width and similar profiletyre profile)o Number of axles: 1` x 110 mmo Wheel base: 2100 mmo Hitch load 22kN - 2.2Tonso Unladen weight 3600 kgo Total weight 13600 kgo Spreading width - PERROT spreader 10mo Tractor with 80 hpo Time of filling the tank with the compressor: MEC 9000 approximately 5 min o Tank emptying time from 6 minSpecifications and standard equipment: Tank made of 6mm thick sheet metal, tank has additional reinforcement rings. Frame construction. Tank hot-dip galvanised inside and outside. Inside the tank a breakwater with reinforcing rings. Compressor MEC9000 M Slurry shut-off valve for the compressor. Manowacometer. Bottom hitch at 45cm or top hitch (height to be determined). Exchangeable hitching eye (40 mm or 50 mm to be specified). Mechanically adjustable side support foot up to 4 tonnes capacity. Tubular water level gauge fi90mm Top manhole fi200mm. Lighting installation required by traffic regulations. Service brake - pneumatic (1 or 2 circuit to be specified). Additional hand brake. Hose 6"(fi 150) with suction basket - suction hose length 6m. Rear opening bottom pan fi 1600mm with two spigots. 6" hydraulically operated main drain gate valve. Second bottom gate valve fi150mm with 6" Perrot quick coupling. Bottling device - PERROT 6" bottling machine.

More information

Type: Slurry tank

Field of application: Agriculture

Technical condition: very good

Visual appearance: very good

Please contact Maciej Borkowski (english, polski) (+48 601930450, office@ab-group.com.pl) or Joanna Jastrzębska (polski) (+48 606320720, office@ab-group.com.pl) for more information
