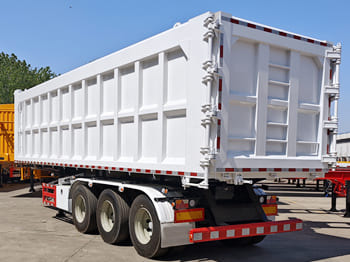

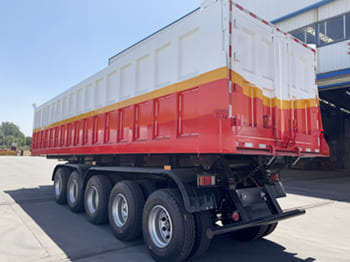

SUNSKY 4-Axle Dump Semi-trailer
نشرت: 7شهر 32يوم
نشرت: 7شهر 32يوم
نشرت: 7شهر 32يوم
China, office add: NO.178, XINFENG ROAD, HULI DISTRICT , XIAMEN CITY, CHINAFour-axle dump semi-trailer is a commercial vehicle designed for the transportation of heavy bulk goods. Its four-axis design gives it excellent load-carrying capacity and stability, making it ideal for transporting large quantities of heavy cargo such as building materials, ores, etc. The vehicle is equipped with an efficient dump system, which can quickly and easily dump the goods, improve the efficiency of loading and unloading, and reduce transportation costs.
Dump Trailer parameter
35cbm 4-axle tipper semi-trailer
Feature: Carry Sand, Stone, Mine, Garbage and so on
Dimension(L*W*H): 10000*2600*3500 mm
Dump box size 9500*2350*1700 mm(35CBM)
Main frame: I beam height 500mm,thickness 16/16/8mm
The thickness of body Side wall: 6mm
Bottom floor: 8mm
Capacity(CBM): 35CBM
Payload:50 Tons
Kingpin: Bolt-in type 3.5 inch
Landing gear: Two-speed manual operation 19”
Tire size: Linglong brand 12R22.5 (17 pcs)
Rim size: 9.00*22.5(17 pcs)
Axle: 13Tons, 4 Axle
Suspension: 1st axle with airbag suspension
2nd-4th axle with Spring suspension
Brake system: Dual line with Re-6 emergency relay valve, T30/30 air chamber, 46L air tank
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Hydraulic system Hyva brand
Painting: Two coat of anti-corrosion prime; one coat of finish painting
Accessory: One tool box; one set of standard tool
