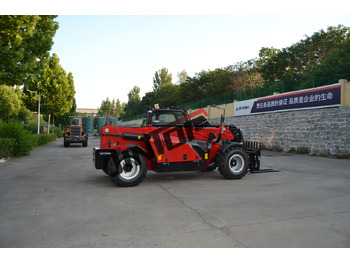

7ton Telehandler JTT730

نشرت: 3شهر 19يوم

7ton Telehandler JTT730 7ton Telehandler JTT730: صورة 2

7ton Telehandler JTT730 7ton Telehandler JTT730: صورة 3

7ton Telehandler JTT730 7ton Telehandler JTT730: صورة 4

نشرت: 3شهر 19يوم

سنة الصنع

2025

الموقع

China, Shandong Province, China

الشاسيه/ نظام التعليق

قاعدة العجلات

2850 mm

السؤال عن معلومات تفصيلية

Maximum lift capacity: 3000kg

Lift capacity to full height: 2300kg

Lift capacity at full reach: 1100kg

Lift height: 6800mm

Reach at maximum lift height: 450mm

Maximum forward reach: 3600mm

Weight unload: 7000kg

Tyre: 16/70-20

Outside turn radius(over tyre): 4250mm

Carriage roll back angle(degrees): 42.6

Carriage dump angle(degrees): 37.5

Overall height: 2400mm

Overall width(over tyres): 2200mm

Inside width of cab: 800mm

Front track: 1750mm

Wheelbase: 2850mm

Overall length to front tyres: 4200mm

Overall length to front carriage: 4650mm

Ground clearance: 350mm

Engine brand: YUNNEI

Engine rate power: 76KW

Pallet fork length: 1220mm

Optional engine: China II standard:Cummins4BT3.9-C100(74KW)EPA3,EURO3 standard:Yanmar4TNV98T(61.3KW)EURO5 standard:Xinchai 4E30YG52(55.8KW)EPA4standard:QSB2.8t4TC74(55KW)

Mines and quarries: efficient transportation of heavy-duty materials

Timber processing and forestry: loading, unloading and stacking of logs

Construction and engineering: handling of building materials and on-site operations

Ports and logistics hubs: handling of containers and bulk cargo

Agriculture and animal husbandry: handling of materials such as feed and straw

Special scenarios: handling of hazardous materials and non-standard goods
