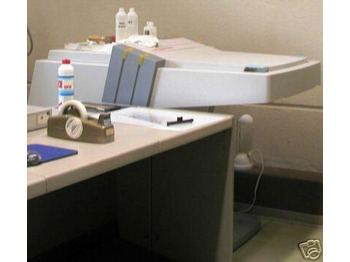

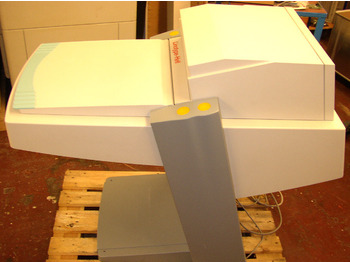

flatbed scanner Heidelberg Topaz 3240-2 with robotic attachment and LinoColor 6

نشرت: 1سنة 3شهر

نشرت: 1سنة 3شهر

العلامة التجارية

HEIDELBERG

رقم الاعلان

43077

سنة الصنع

1997

الموقع

Germany, Dabergotz 16818 , Bahnhofstrasse 13 a, Germany

مستلزمات إضافية

الوحدات المتاحة

السؤال عن معلومات تفصيلية

flatbed scanner Heidelberg Topaz 3240-2 with robotic attachment and LinoColor 6

year 1997

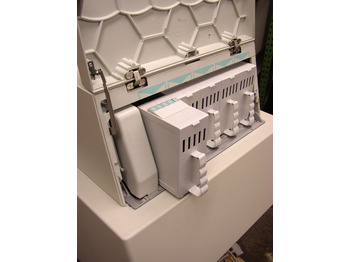

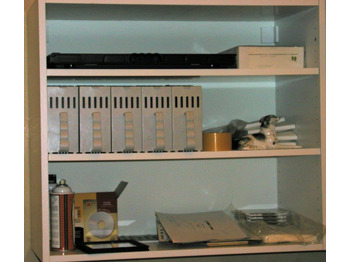

The robot option, allows longer unattended scanning by providing space for a total of 25 slide holders, which are fed in one after the other and processed automatically. Each holder can hold up to nine 35mm slides (or originals up to 10 x 13 cm), giving a total scanning capacity of 225 images. Five original holders are grouped in a cassette and can be removed and reloaded during operation, if necessary even after the prescans have been made. The prescans can be transferred via the network to any workstation, where they can be adjusted and then placed back in the fine scan queue. As soon as the corresponding original holder is inserted again - it is identified by a code - the scanner automatically starts producing the fine scans.

Trilinear colour CCD line with 3x8000 picture elements

AutoScaling special hardware for stepless calculation of the scale in the scanner

AutoSharpening special hardware for optimal and fast calculations in the scanner

Software for redigitisation of films CopyDot and descreening

Original holder:

- 2 universal trays for viewing originals, max. format 305x457mm

- 1 copy tray with 4 register strips

Mounting aids:

- Light table integrated in scanner

- Mounting ruler for exact alignment of originals on the original holder

Original size max. 305x457mm for top view, 250x457mm for top view

Types of originals Transparency and top view, colour and black-and-white, half-tone

and line originals, positive and negative, 3 D originals up to max. 20 mm height

Scale range: 20 - 2500

Scale calculation Stepless with AutoScaling hardware

Sharpness calculation AutoSharpening-Hardware in scanner

Scanning resolution max.: optical 2000 lines/cm(5080 dpi),

interpolated resolution 4330 lines/cm(11000 dpi);

Differentiable density range 3.7 D, measured on the film output of a grey wedge

Resolvable density max. 4.0 D, measured on the film output of a grey wedge

Signal resolution 16 bit per pixel and colour (linear)

Interface SCSI-2 for workstation connection

Mains voltage 90 -130 V, 180 - 260 V, 50 - 60 Hz

Power consumption approx.150W

Ambient conditions 8 - 27°C, 30 - 70% relative humidity

Dimensions (WxHxD) approx. 700x900x1300mm

Weight approx.150 kp
