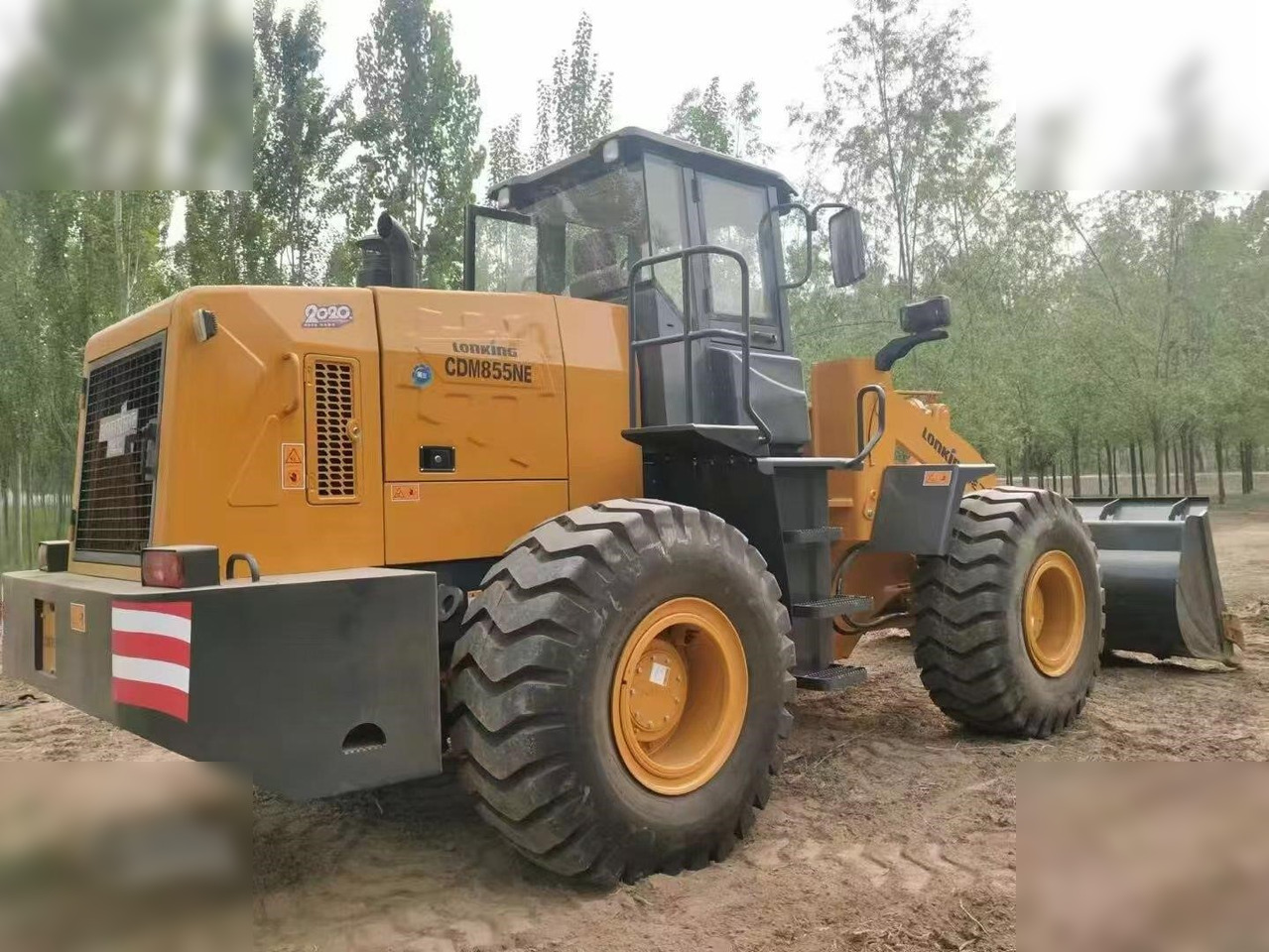

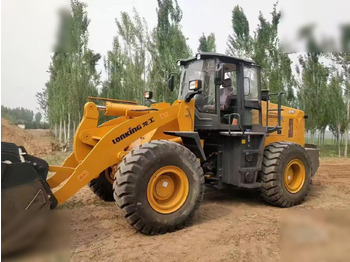

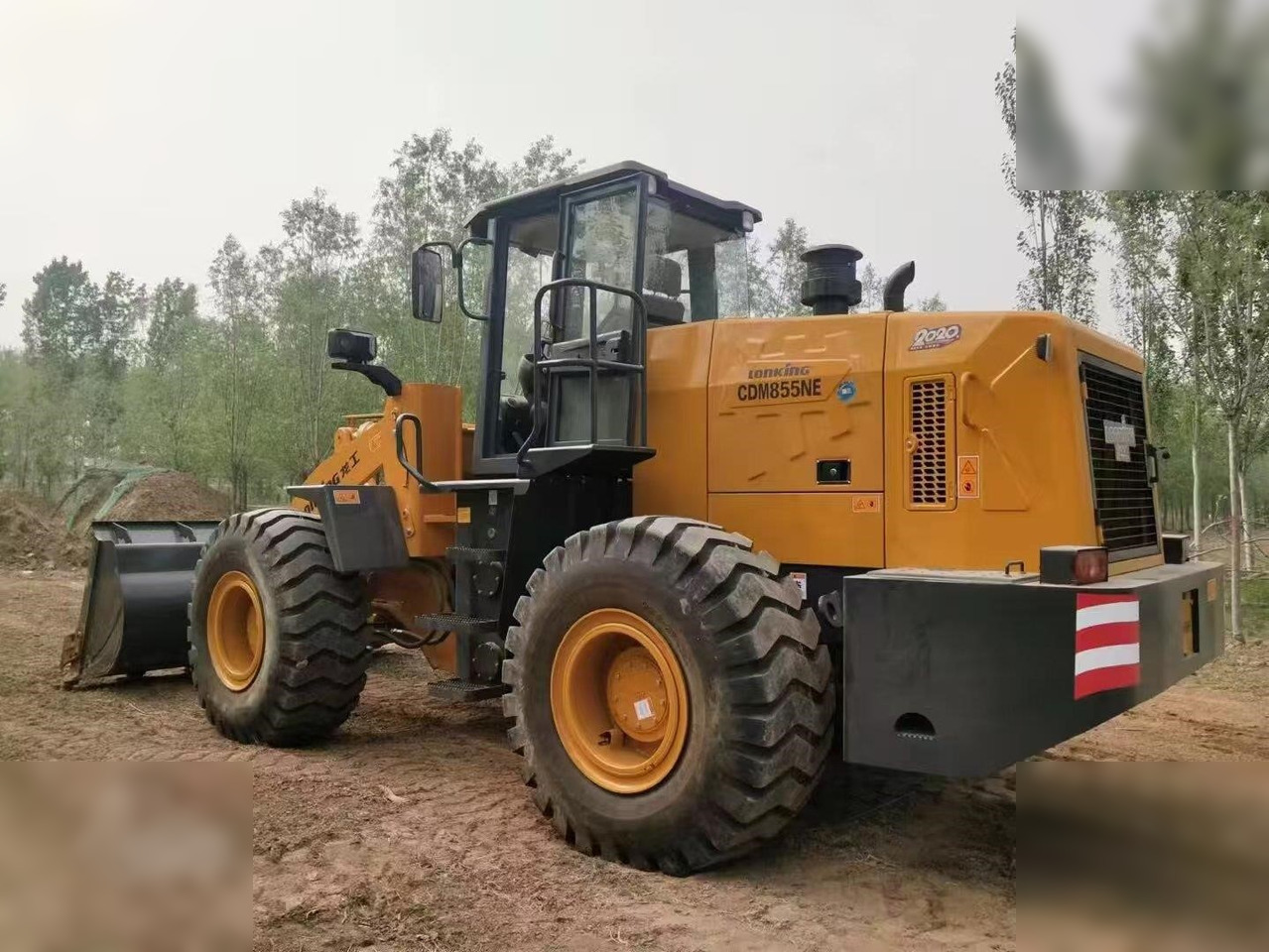

LONKING CDM855NE
نشرت: 4شهر 16يوم
نشرت: 4شهر 16يوم
نشرت: 4شهر 16يوم
China, 231600 合肥市, Anhui, 231600Condition: Used
-
Lonking CDM855N Wheel loader Operating mass of complete machine (kg): 17300 Rated bucket capacity (m ³): 2.7 Rated load (kg): 5000 Basic parameters of complete machine Bucket capacity range(m3) 2.7 Rated load capacity(kg) 5000 Operation quality of the whole machine(kg) 17300 Maximum traction(kN) 160±3 Maximum digging force(kN) ≥185 Overall dimensions of the complete machine(LongXWideXHighmm) 8120X3010X3380 Dump height(mm) 3077 Unloading distance(mm) 1256 Wheelbase(mm) 3230 Wheel track(mm) 2240 Car body corner(°) 35 Maximum gradeability(°) 28 Travel speed(km/h) Ⅰ Ⅱ Forward 11.5 35 Back off 16 Engine Rated power(KW/rpm) 162/2200,154/2200（Optional） Starting voltage(V) 24 Transmission system Torque converter Single-stage double-turbine four-element Type of gearbox Planetary hydraulic shift Shift gear Two advances and one retreat Transmission pressure(MPa) 1.2-1.5 Main drive Spiral bevel gear primary reduction Wheel-side reduction type Spur gear planetary transmission Tire 23.5-25-16PR Braking system Service brake Single-pipe air-on-oil caliper disc type four-wheel brake Parking brake Pneumatically controlled caliper disc brake Brake air pressure(MPa) 0.7-0.78 Steering hydraulic system Type Full hydraulic load sensing steering system Steering pump Gear pump System operating pressure(MPa） 15 Steering angle ±35° Working hydraulic system Working pump Gear pump System operating pressure(MPa) 16 Three terms and Promote(Fully loaded) 6.0 Unloading 1.2 Descend(No load) 3.8 Sum 11 Electrical system System voltage(V) 24 Battery capacity(Ah) 2-120 Lighting voltage(V) 24 Capacity of various oils Fuel oil(L) 270 Hydraulic oil(L) 270 Engine oil(L) 20 Gearbox(L) 48 Front axle/Rear axle(L) 28/28
-
Bucket Capacity: 3.53 cu yd
-
Number of Attachments: 1
-
Auxiliary Hydraulics: Yes
-

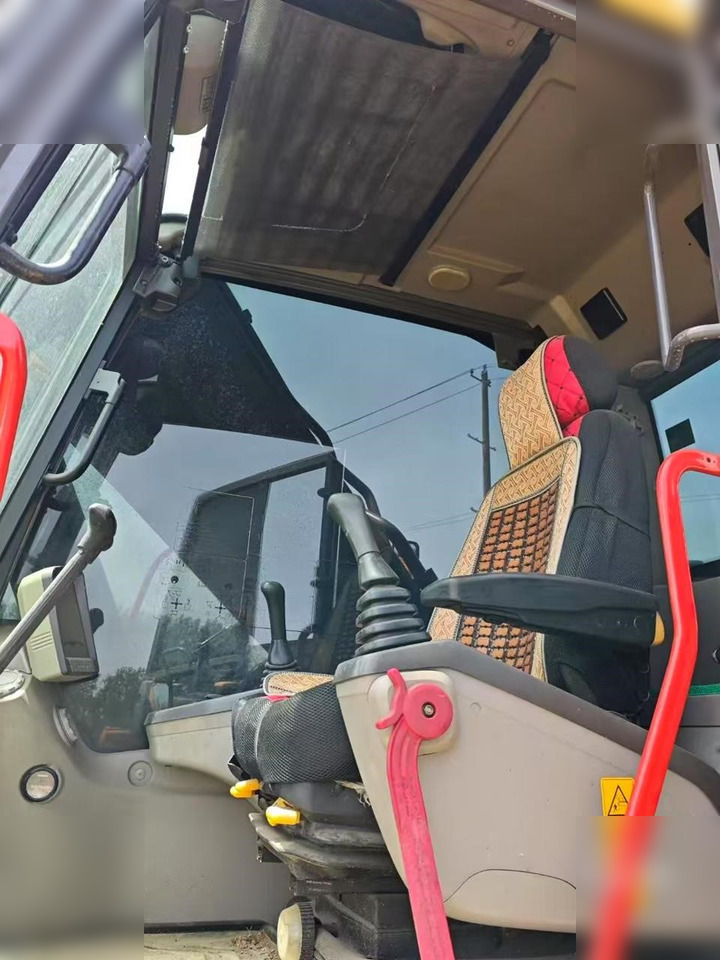

ROPS: Enclosed
-
Engine Turbo: Yes
-
Eco Mode: Yes
